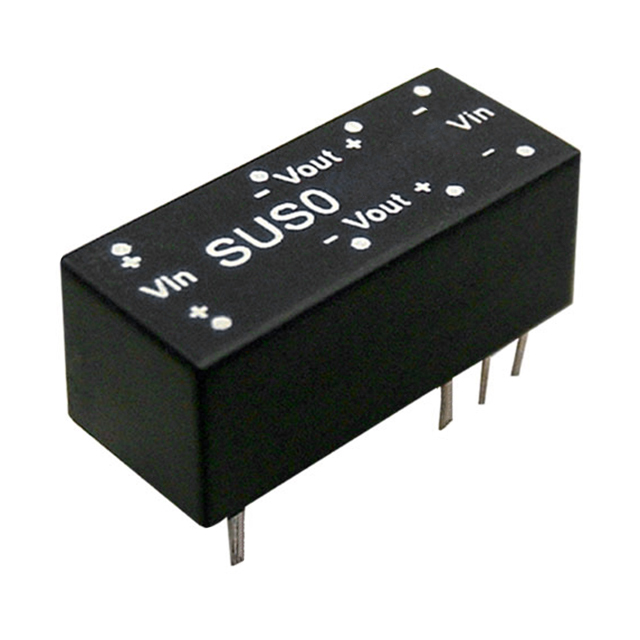

SUS01 Series

Catalog

DC DC CONVERTER 12V 1W

Part	Number of Outputs	Type	Applications	Mounting Type	Voltage - Isolation	Package / Case	Voltage - Output 1	Features	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Current - Output (Max) [Max]
MEAN WELL USA Inc. SUS01O-12	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	12 V	OCP SCP	52.8 V	-25 °C	71 °C	43.2 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	83 %	84 mA
MEAN WELL USA Inc. SUS01O-05	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	5 V	OCP SCP	52.8 V	-25 °C	71 °C	43.2 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	74 %	200 mA
MEAN WELL USA Inc. SUS01L-12	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	12 V	OCP SCP	5.5 V	-25 °C	71 °C	4.5 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	78 %	84 mA
MEAN WELL USA Inc. SUS01M-09	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	9 V	OCP SCP	13.2 V	-25 °C	71 °C	10.8 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	79 %	111 mA
MEAN WELL USA Inc. SUS01L-05	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	5 V	OCP SCP	5.5 V	-25 °C	71 °C	4.5 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	73 %	200 mA
MEAN WELL USA Inc. SUS01L-09	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	9 V	OCP SCP	5.5 V	-25 °C	71 °C	4.5 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	75 %	111 mA
MEAN WELL USA Inc. SUS01N-05	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	5 V	OCP SCP	26.4 V	-25 °C	71 °C	21.6 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	76 %	200 mA
MEAN WELL USA Inc. SUS01N-09	1	Isolated Module	ITE (Commercial)	Through Hole	1000 V	16-DIP Module 8 Leads	9 V	OCP SCP	26.4 V	-25 °C	71 °C	21.6 V	0.35 in	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 in	80 %	111 mA
