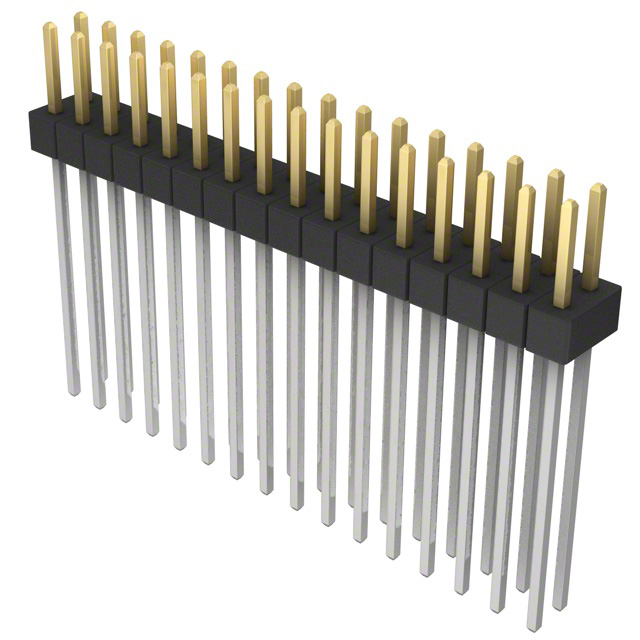

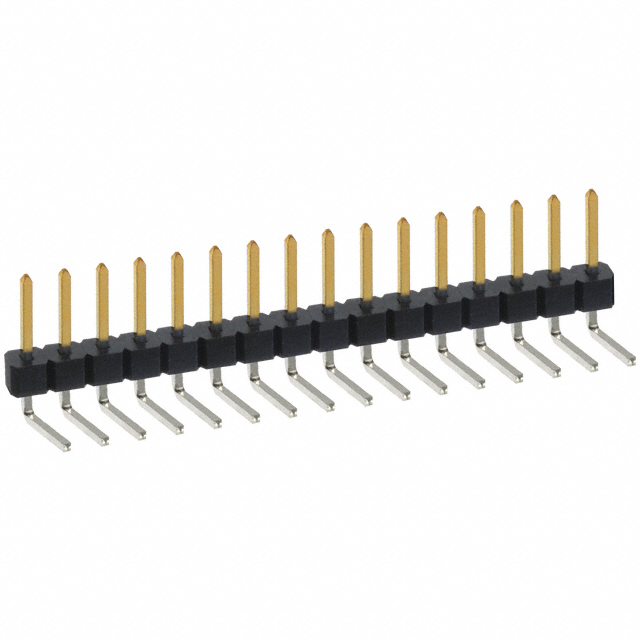

PBC16 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Type	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish - Post	Insulation Color	Termination	Contact Shape	Style	Current Rating (Amps)	Number of Positions	Insulation Material	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows [custom]	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PBC16SAEN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C	1	0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.52 in	13.21 mm	Male Pin	0.85 in	21.59 mm	All	Gold	0.23 in	5.84 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A	16	Polybutylene Terephthalate (PBT)	Unshrouded
Sullins Connector Solutions PBC16DFAN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C		0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.12 in	3.05 mm	Male Pin			All	Gold	0.318 in	8.08 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A		Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	2.54 mm	13.67 mm	0.538 in	2

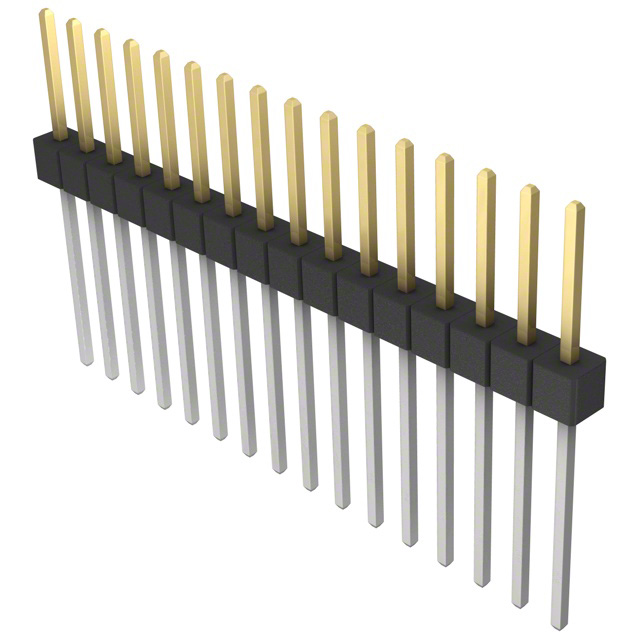

Sullins Connector Solutions PBC16SFEN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C	1	0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.52 in	13.21 mm	Male Pin	0.938 in	23.83 mm	All	Gold	0.318 in	8.08 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A	16	Polybutylene Terephthalate (PBT)	Unshrouded
Sullins Connector Solutions PBC16SGBN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C	1	0.14 in	3.56 mm	Right Angle Through Hole	0.1 "	2.54 mm	Push-Pull			Male Pin			All	Gold	0.318 in	8.08 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A	16	Polybutylene Terephthalate (PBT)	Unshrouded						5.08 mm	0.2 "

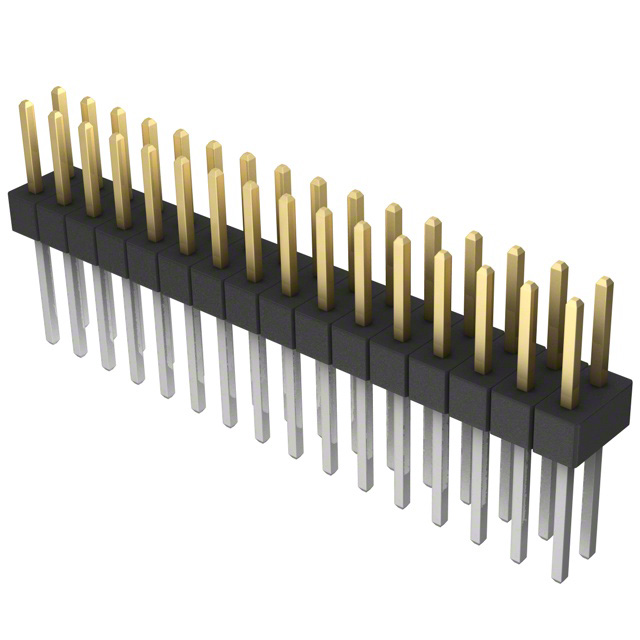

Sullins Connector Solutions PBC16DACN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C		0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.32 in	8.13 mm	Male Pin	0.65 in	16.51 mm	All	Gold	0.23 in	5.84 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A		Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	2.54 mm			2
Sullins Connector Solutions PBC16SAAN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C	1	0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.12 in	3.05 mm	Male Pin			All	Gold	0.23 in	5.84 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A	16	Polybutylene Terephthalate (PBT)	Unshrouded			11.43 mm	0.45 in
Sullins Connector Solutions PBC16DABN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C		0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.23 "	5.84 mm	Male Pin	0.56 in	14.22 mm	All	Gold	0.23 in	5.84 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A		Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	2.54 mm			2
Sullins Connector Solutions PBC16SABN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C	1	0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.23 "	5.84 mm	Male Pin	0.56 in	14.22 mm	All	Gold	0.23 in	5.84 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A	16	Polybutylene Terephthalate (PBT)	Unshrouded
Sullins Connector Solutions PBC16DAAN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C		0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.12 in	3.05 mm	Male Pin			All	Gold	0.23 in	5.84 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A		Polybutylene Terephthalate (PBT)	Unshrouded	0.1 in	2.54 mm	11.43 mm	0.45 in	2

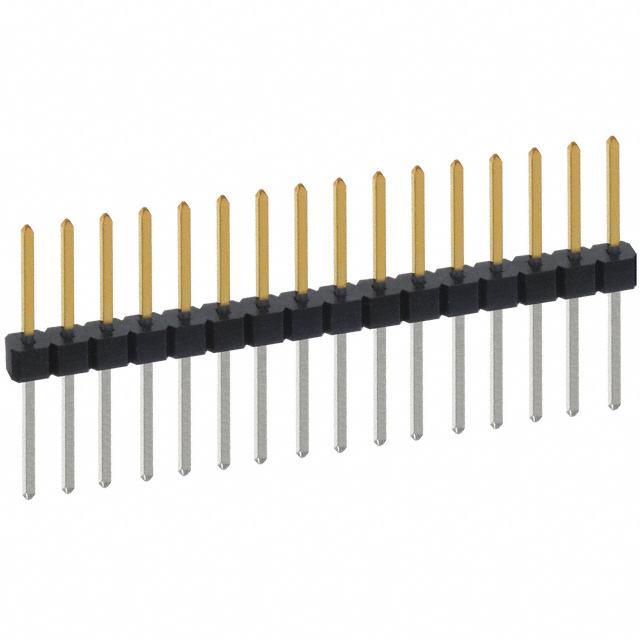

Sullins Connector Solutions PBC16SFDN	2.54 µm	100 µin	Header Breakaway	Phosphor Bronze	-65 ░C	125 °C	1	0.1 in	2.54 mm	Through Hole	0.1 "	2.54 mm	Push-Pull	0.42 in	10.67 mm	Male Pin	0.838 in	21.29 mm	All	Gold	0.318 in	8.08 mm	0.25 µm	10 µin	UL94 V-0	Tin	Black	Solder	Square	Board to Board Cable	3 A	16	Polybutylene Terephthalate (PBT)	Unshrouded
