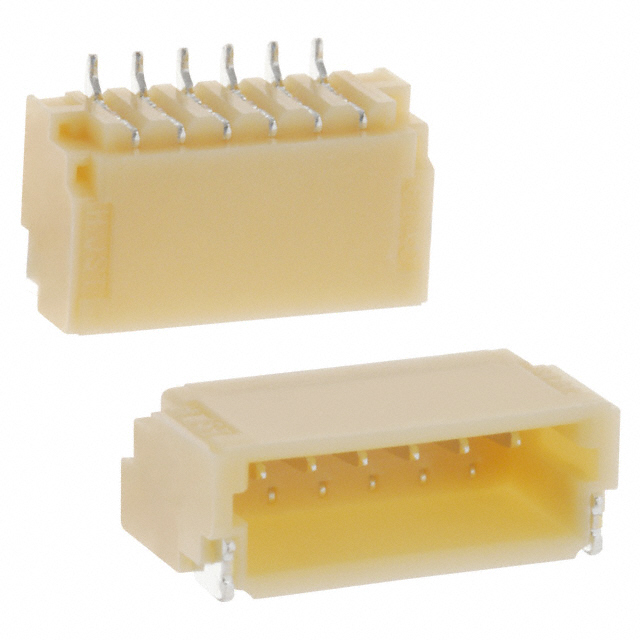

SM06B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 6POS 1MM
| Part | Termination | Material Flammability Rating | Insulation Height | Insulation Height | Contact Finish - Post | Style | Insulation Color | Number of Positions | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Voltage Rating | Contact Shape | Insulation Material | Connector Type | Mounting Type | Pitch - Mating | Pitch - Mating | Shrouding | Number of Positions Loaded | Number of Rows | Features | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | UL94 V-0 | 0.114 in | 2.9 mm | Tin | Board to Cable/Wire | Natural | 6 | Male Pin | 85 °C | -25 °C | Copper Alloy | 50 V | Square | Nylon Polyamide (PA) | Header | Right Angle Surface Mount | 1 mm | 0.039 in | Shrouded - 4 Wall | All | 1 | Solder Retention | Push-Pull |
