796867 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
TERM BLOCK HDR 21POS VERT 5.08MM
| Part | Contact Tail Length | Contact Tail Length | Material Flammability Rating | Insulation Height | Insulation Height | Contact Material | Mounting Type | Color | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Levels | Type | Voltage - UL | Contact Mating Finish | Header Orientation | Termination Style | Positions Per Level | Pitch | Pitch | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 21 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 21 | 5.08 mm | 0.2 in | |

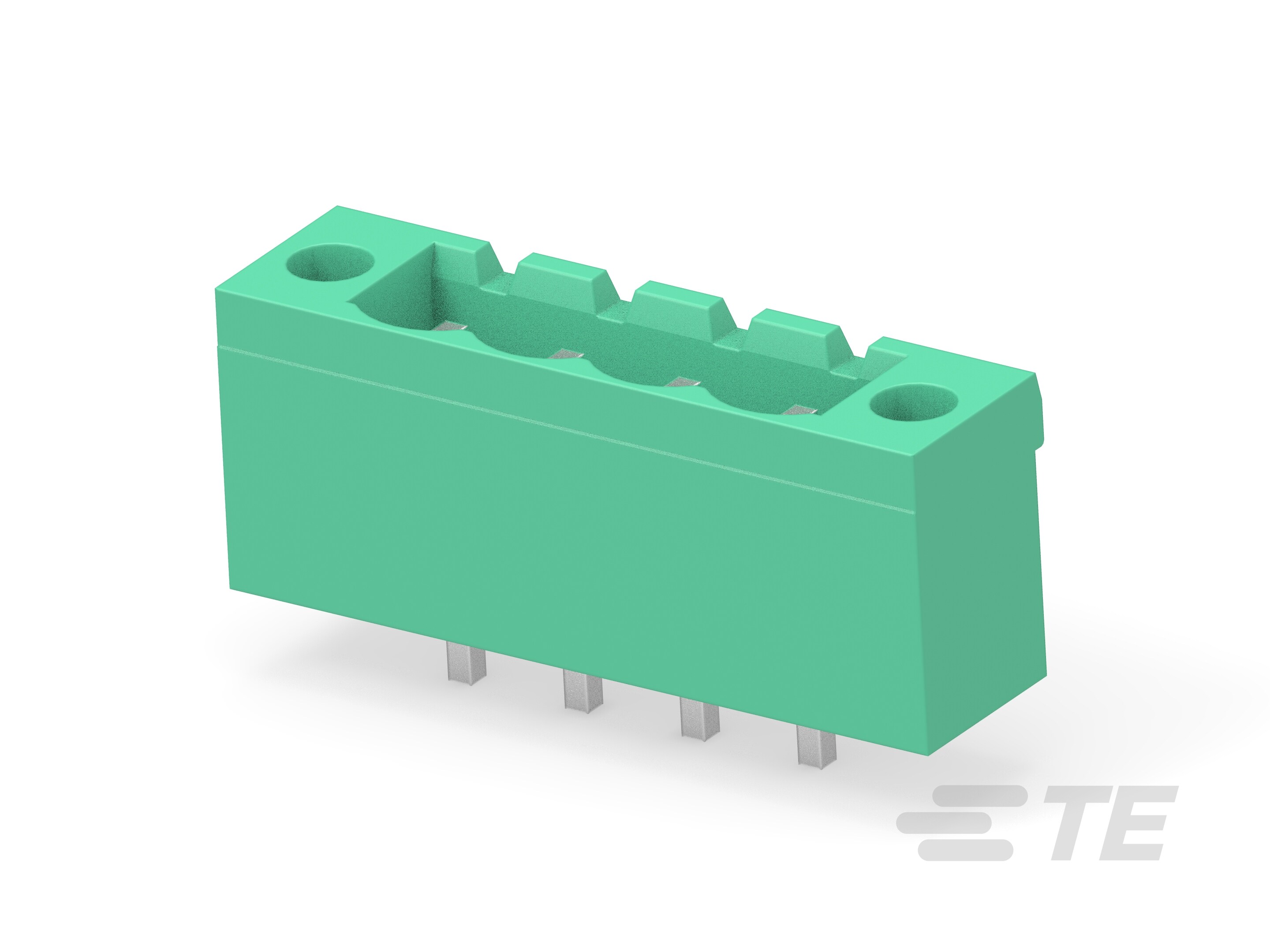

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 4 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 4 | 5.08 mm | 0.2 in | |
TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 15 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 15 | 5.08 mm | 0.2 in | |

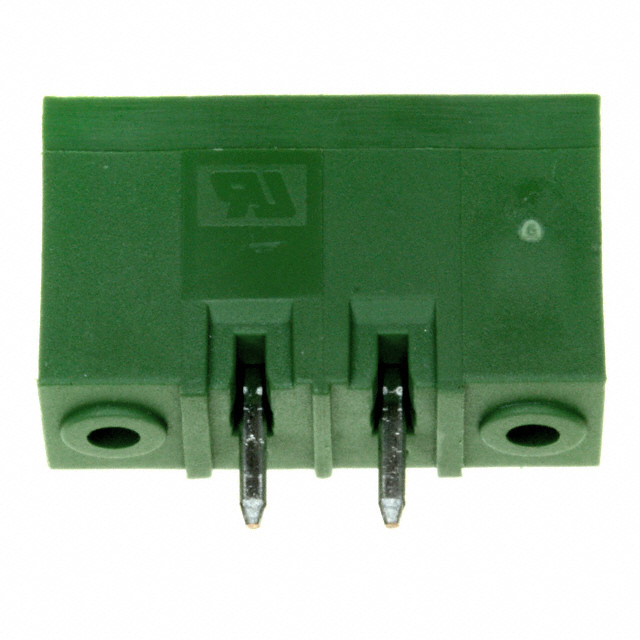

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 2 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 2 | 5.08 mm | 0.2 in | |
TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 14 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 14 | 5.08 mm | 0.2 in | |
 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 7 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 5.08 mm | 0.2 in | 7 | |
TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 19 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 19 | 5.08 mm | 0.2 in | |

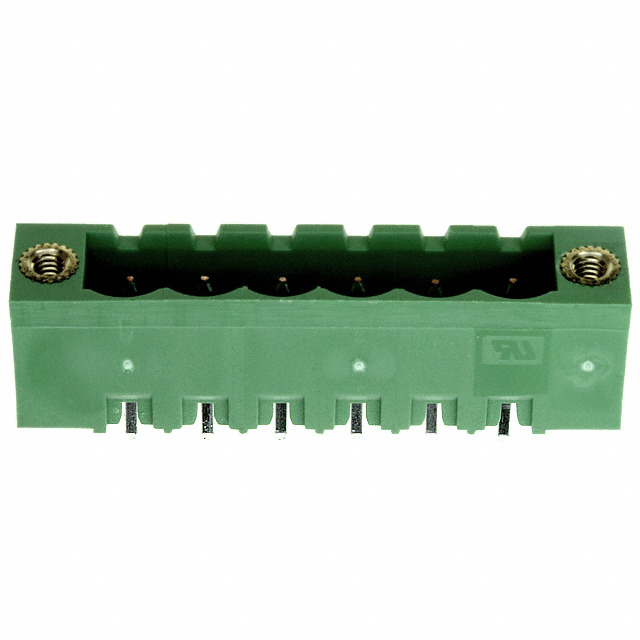

 TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 6 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 6 | 5.08 mm | 0.2 in | |
TE Connectivity AMP Connectors | 0.138 in | 3.5 mm | UL94 V-0 | 0.472 " | 12 mm | Copper Alloy | Through Hole | Green | Mating Flange | -40 C | 110 °C | 13 | 1 | Header Male Pins Shrouded (4 Side) | 300 V | Tin | Vertical | Solder | 13 | 5.08 mm | 0.2 in |
