T38010 Series

Catalog

CONN BARRIER STRP 10CIRC 0.375"

Part	Number of Wire Entries	Number of Rows	Barrier Type	Mounting Type	Operating Temperature	Terminal Screw Material	Terminal Screw Finish	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Material - Insulation	Top Termination	Number of Circuits	Features	Voltage Rating	Terminal Block Type	Current Rating (Amps)	Bottom Termination
Curtis Industries T38010-10-0	10	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	10	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-25-0	25	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	25	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-26-0	26	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	26	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-05-0	5	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	5	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-07-0	7	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	7	Flange	300 VDC	Barrier Block	20 A	PC Pin

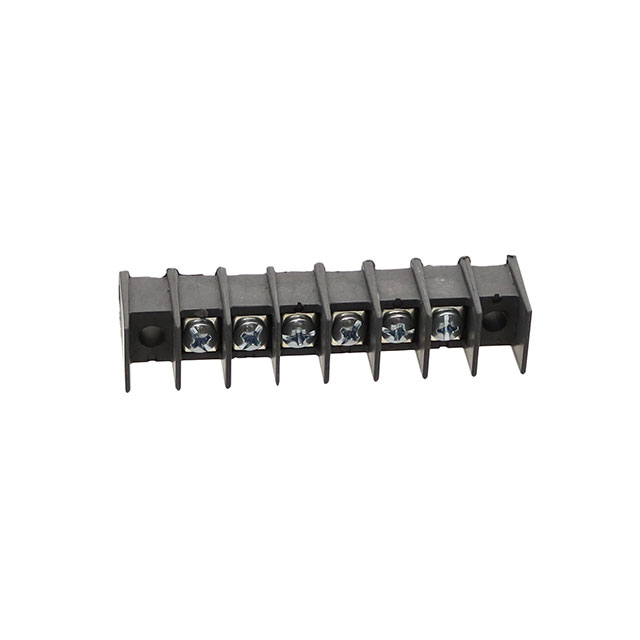

Curtis Industries T38010-06-0	6	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	6	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-24-0		1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	24	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-11-0	11	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	11	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-14-0	14	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	14	Flange	300 VDC	Barrier Block	20 A	PC Pin
Curtis Industries T38010-17-0	17	1	2 Wall (Dual)	Chassis Panel Through Hole	105 C	Steel	Nickel	UL94 V-0	12 AWG	22 AWG	9.53 mm	0.375 in	Polypropylene (PP)	Screws	17	Flange	300 VDC	Barrier Block	20 A	PC Pin
