CS5102A Series
Manufacturer: Cirrus Logic Inc.
Beta
⌘K
IC ADC 16BIT SAR 28PLCC
| Part | Mounting Type | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Voltage - Supply, Digital | Input Type | Number of Bits | Package / Case | Number of Inputs | Number of A/D Converters | Sampling Rate (Per Second) | Ratio - S/H:ADC | Reference Type | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Architecture | Operating Temperature [Max] | Operating Temperature [Min] | Configuration | Data Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

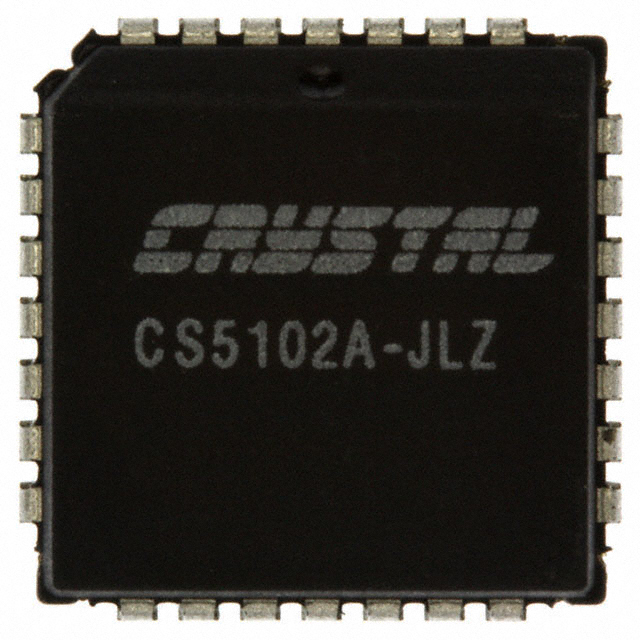

 Cirrus Logic Inc. | Surface Mount | 5 V | -5 V | 5 V | Single Ended | 16 | 28-LCC (J-Lead) | 2 | 1 | 20 k per second | 1:1 | External | 11.51 | 28-PLCC | 11.51 | SAR | 70 °C | 0 °C | S/H-ADC | SPI |

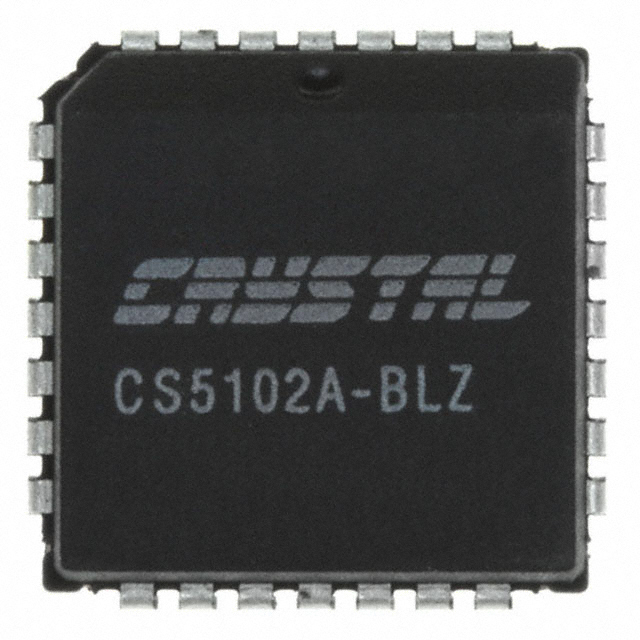

Cirrus Logic Inc. | Surface Mount | 5 V | -5 V | 5 V | Single Ended | 16 | 28-LCC (J-Lead) | 2 | 1 | 20 k per second | 1:1 | External | 11.51 | 28-PLCC | 11.51 | SAR | 85 °C | -40 C | S/H-ADC | SPI |
