630-3WK Series
Manufacturer: EDAC Inc.
Beta
⌘K

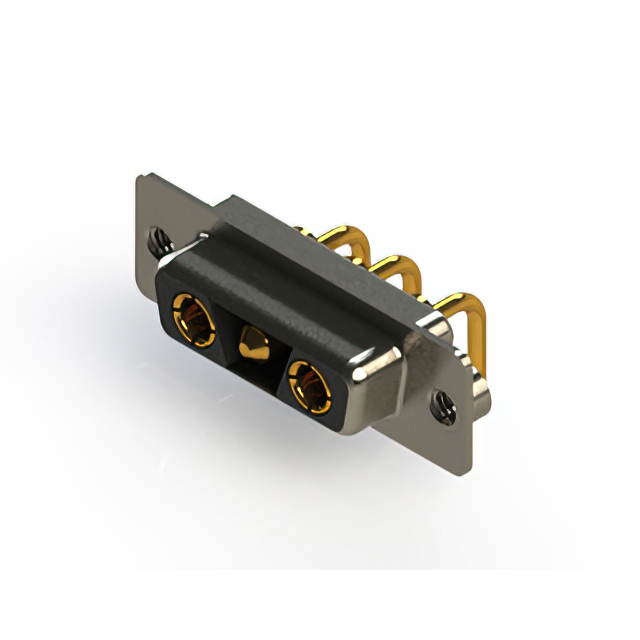

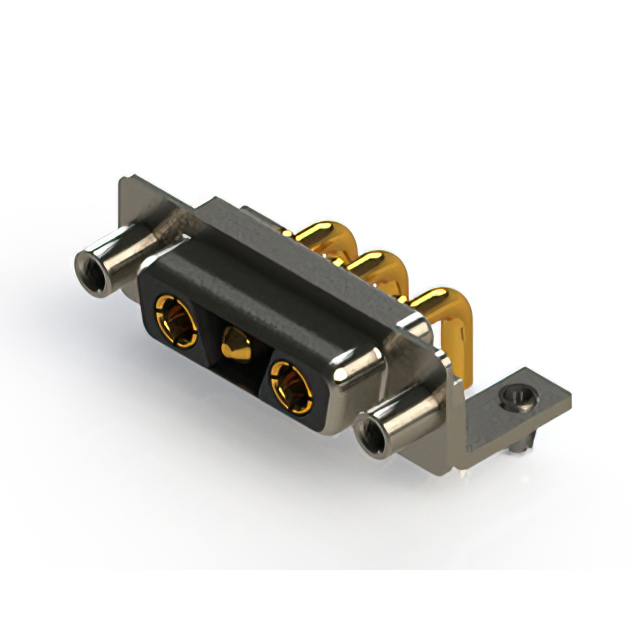

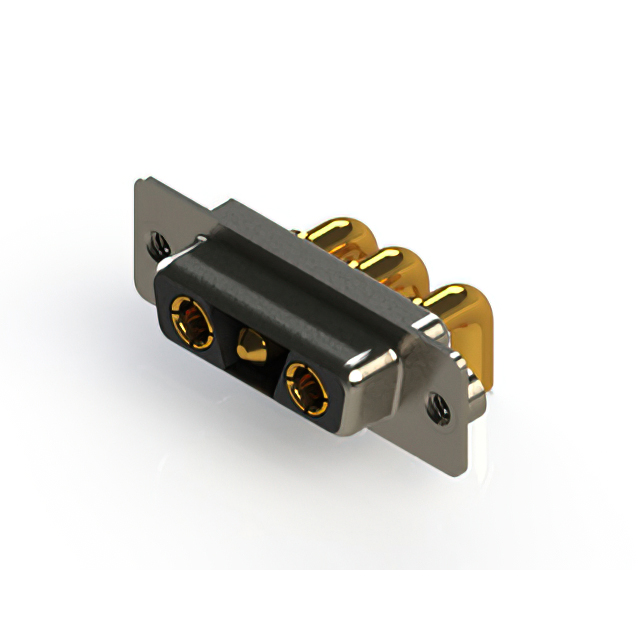

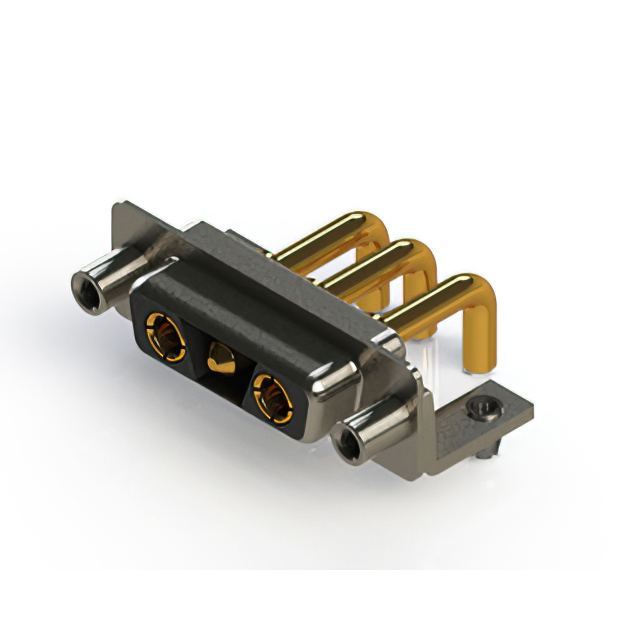

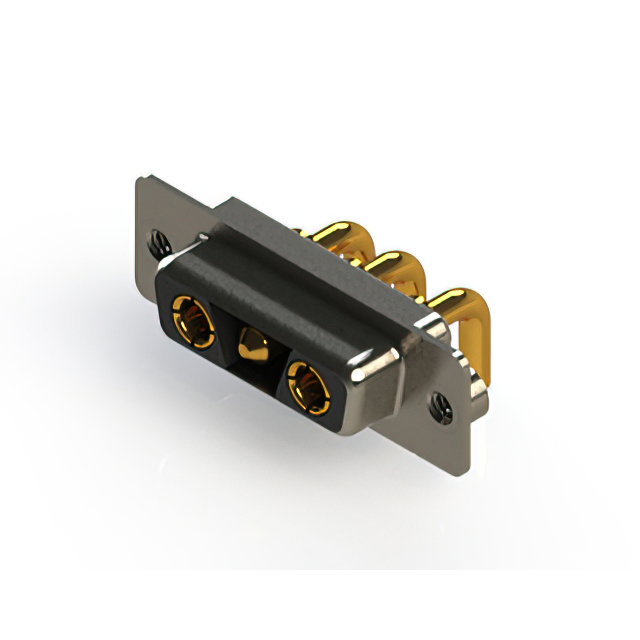

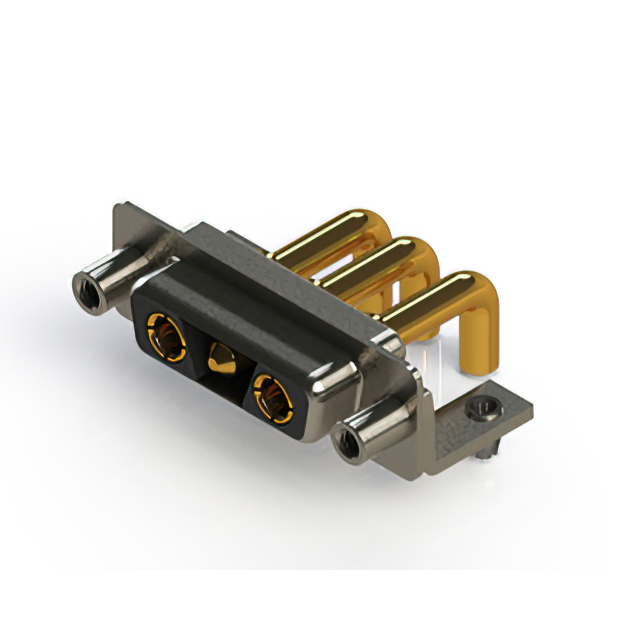

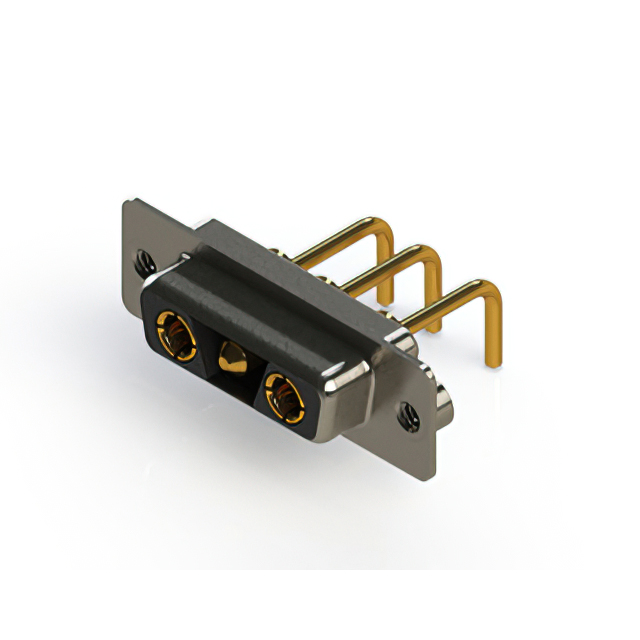

CONN D-SUB RCPT 3POS R/A SLDR
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Number of Rows | Current Rating (Amps) | Mounting Type | Number of Positions | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Flange Feature | Flange Feature | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Type | Contact Finish Thickness | Features | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 10 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | Housing/Shell | 4-40 | UL94 V-0 | 0.52 " | 13.2 mm | Power | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 40 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | Combo D-Sub | 4-40 | UL94 V-0 | 0.52 " | 13.2 mm | Power | Flash | Board Lock Mounting Brackets | ||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 20 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | 4-40 | UL94 V-0 | 0.52 " | 13.2 mm | Power | Board Lock Mounting Brackets | Nickel Plated Steel | ||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 20 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | Combo D-Sub | Housing/Shell | 4-40 | UL94 V-0 | 0.52 " | 13.2 mm | Power | Flash | Nickel Plated Steel | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 40 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | Housing/Shell (Unthreaded) | UL94 V-0 | 0.52 " | 13.2 mm | Power | Shielded | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 10 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | Board Side (M3) | UL94 V-0 | 0.52 " | 13.2 mm | Power | Nickel Plated Steel | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 20 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | M3 | UL94 V-0 | 0.52 " | 13.2 mm | Power | Board Lock Mounting Brackets | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 40 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | M3 | UL94 V-0 | 0.52 " | 13.2 mm | Power | Board Lock Mounting Brackets | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 30 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | M3 | UL94 V-0 | 0.52 " | 13.2 mm | Power | Board Lock Mounting Brackets | Nickel Plated Steel | ||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 1 | 40 A | Right Angle Through Hole | 3 | Receptacle Female Sockets and Male Pins | 3WK3 A DA | 2 | Solder | Gold | 30 Áin | 0.76 Ám | Combo D-Sub | Housing/Shell | 4-40 | UL94 V-0 | 0.52 " | 13.2 mm | Power |
