MC711 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
IC MCU 8BIT 12KB OTP 52PLCC
| Part | Speed | Program Memory Type | Oscillator Type | Mounting Type | Package / Case | Program Memory Size | Connectivity | EEPROM Size | Data Converters | Core Processor | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Peripherals | RAM Size | Core Size | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | EEPROM Size [y] | EEPROM Size [x] | RAM Size | Number of I/O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | 2 MHz | OTP | Internal | Surface Mount | 52-LCC (J-Lead) | 12 KB | SCI SPI | 512 x 8 | A/D 8x8b | HC11 | 5.5 V | 4.5 V | POR WDT | 512 | 8-Bit | 85 °C | -40 °C | |||||

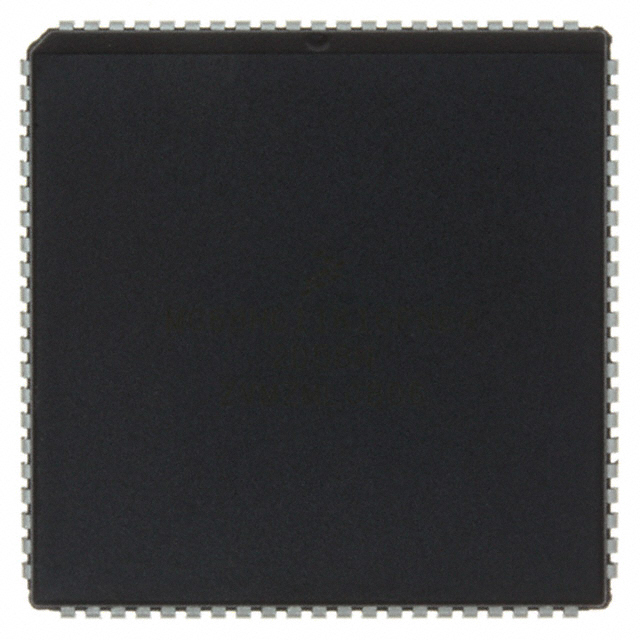

 Freescale Semiconductor - NXP | 4 MHz | OTP | Internal | Surface Mount | 84-LCC (J-Lead) | 24 KB | SCI SPI | A/D 8x8b | HC11 | 5.5 V | 4.5 V | POR PWM WDT | 8-Bit | 85 °C | -40 °C | 84-PLCC (29.29x29.29) | 8 | 640 | 768 x 8 | 62 | ||
 Freescale Semiconductor - NXP | 4 MHz | OTP | Internal | Surface Mount | 80-QFP | 24 KB | SCI SPI | A/D 8x8b | HC11 | 5.5 V | 4.5 V | POR PWM WDT | 8-Bit | 85 °C | -40 °C | 80-QFP (14x14) | 8 | 640 | 768 x 8 | 62 | ||
Freescale Semiconductor - NXP | 4 MHz | OTP | Internal | Surface Mount | 84-LCC (J-Lead) | 24 KB | SCI SPI | A/D 8x8b | HC11 | 5.5 V | 4.5 V | POR PWM WDT | 8-Bit | 105 °C | -40 °C | 84-PLCC (29.29x29.29) | 8 | 640 | 768 x 8 | 62 |
