317-034 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Features	Flange Feature	Read Out	Color	Number of Positions/Bay/Row [custom]	Contact Type	Mounting Type	Number of Rows [custom]	Card Type	Gender	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-034-540-878	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	34	Card Guides	4-40 Threaded Insert Top Mount Opening	Dual	Green	17	Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C

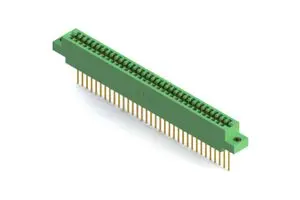

EDAC Inc. 317-034-541-678	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin		Card Guides	4-40 Threaded Insert Top Mount Opening	Single	Green		Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C	34	68 positions
EDAC Inc. 317-034-540-808	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	34		4-40 Threaded Insert Top Mount Opening	Dual	Green	17	Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C

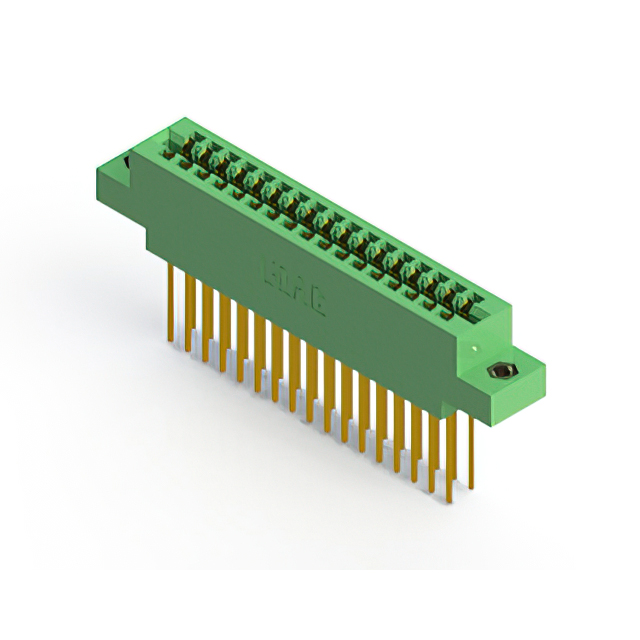

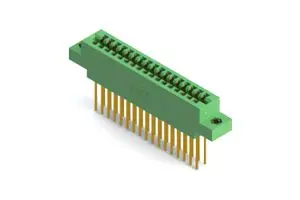

EDAC Inc. 317-034-540-807	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	34		M3 Threaded Insert Top Mount Opening	Dual	Green	17	Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C
EDAC Inc. 317-034-540-802	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	34			Dual	Green	17	Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C
EDAC Inc. 317-034-542-808	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	34		4-40 Threaded Insert Top Mount Opening	Dual	Green	17	Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C
EDAC Inc. 317-034-541-608	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin			4-40 Threaded Insert Top Mount Opening	Single	Green		Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C	34	68 positions
EDAC Inc. 317-034-542-803	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	34		Floating Bobbin Flush Mount	Dual	Green	17	Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C			0.116 "	2.95 mm
EDAC Inc. 317-034-541-607	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin			M3 Threaded Insert Top Mount Opening	Single	Green		Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C	34	68 positions

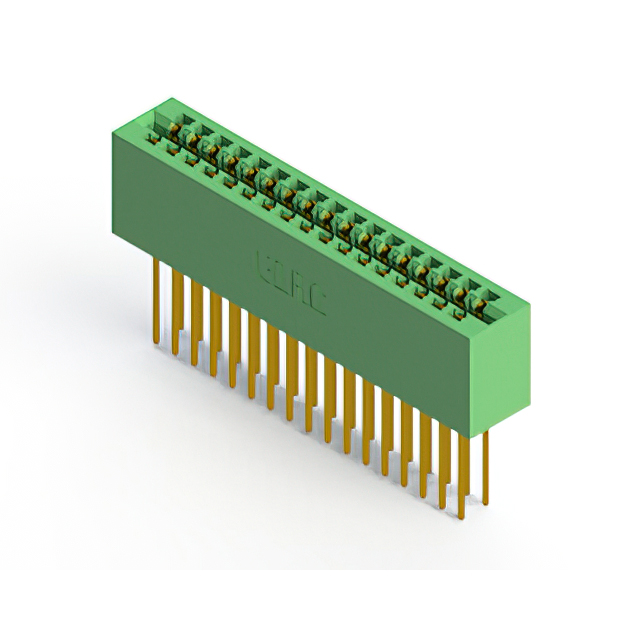

EDAC Inc. 317-034-542-801	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	34			Dual	Green	17	Cantilever	Through Hole	2	Non Specified - Dual Edge	Female	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	-65 ░C	125 °C
