2029000 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

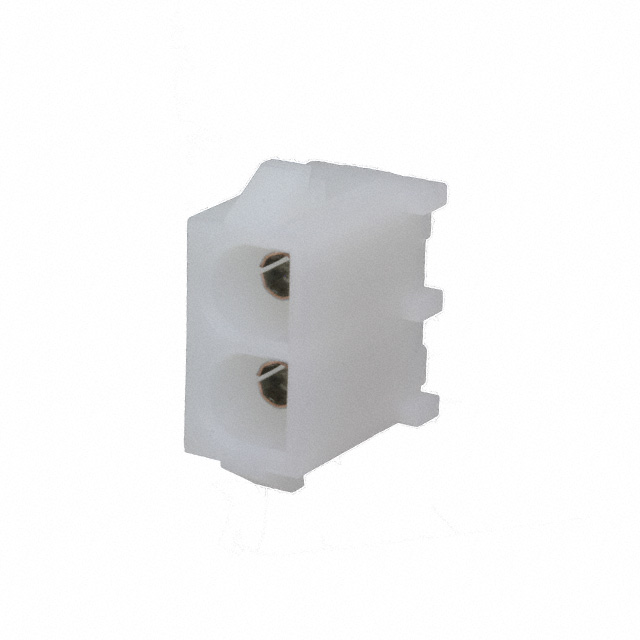

02P UMNL HDR SHRT TAIL, NDH
| Part | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Color | Voltage Rating | Material Flammability Rating | Contact Material | Connector Type | Current Rating (Amps) | Termination | Fastening Type | Contact Finish - Post | Contact Shape | Number of Positions | Style | Number of Positions Loaded | Insulation Material | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Contact Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole | 6.35 mm | 0.25 in | Natural | 600 VAC | UL94 V-2 | Phosphor Bronze | Header | 12 A | Solder | Locking Ramp | Tin | Circular | 2 | Board to Board Cable | All | Nylon Polyamide (PA) | 1 | -40 °C | 105 ░C | 0.13 in | 3.3 mm | Female Socket | 0.58 in | 14.73 mm |
