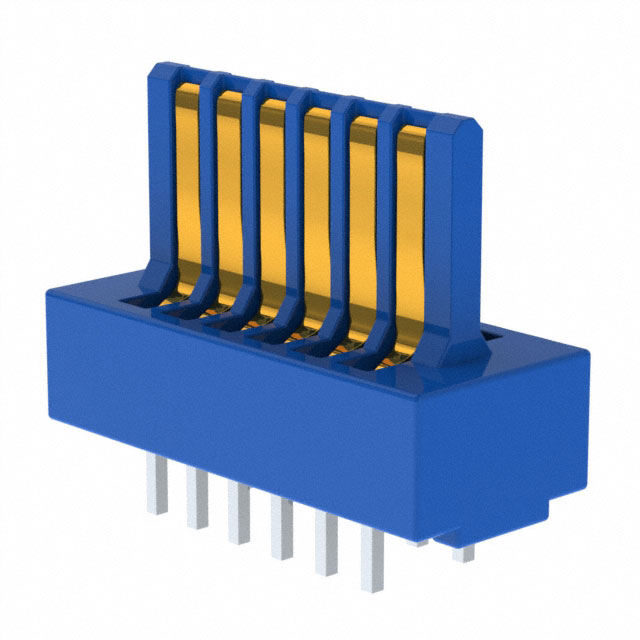

ECC06 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 12POS 0.100
| Part | Material - Insulation | Card Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Read Out | Contact Finish | Number of Rows [custom] | Card Thickness | Card Thickness | Number of Positions | Number of Positions/Bay/Row | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Hairpin Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | Female | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Right Angle Through Hole | |
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Loop Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | Female | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Through Hole | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Full Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | 0.125 " | 3.18 mm | Female | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Through Hole | Blue | |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Fits Female Edgecards | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | Male | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Through Hole | |||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Full Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | Female | Dual | Gold | 2 | 0.79 mm | 0.031 in | 12 | 6 | Through Hole | Blue | |||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Cantilever | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | 0.125 " | 3.18 mm | Female | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Through Hole | ||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Hairpin Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | 0.125 " | Flush Mount Top Opening Unthreaded | 3.18 mm | Female | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Right Angle Through Hole | |
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Loop Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | 4-40 Threaded Insert Top Mount Opening | Female | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Right Angle Through Hole | |||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Loop Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm | Female | Dual | Gold | 2 | 1.57 mm | 0.062 in | 12 | 6 | Through Hole | |
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | Non Specified - Dual Edge | Loop Bellows | -65 ░C | 125 °C | Solder | 0.1 " | 2.54 mm | 30 Áin | 0.76 Ám | Phosphor Bronze | Female | Dual | Gold | 2 | 2.36 mm | 0.093 " | 12 | 6 | Through Hole | Blue |
