228216 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

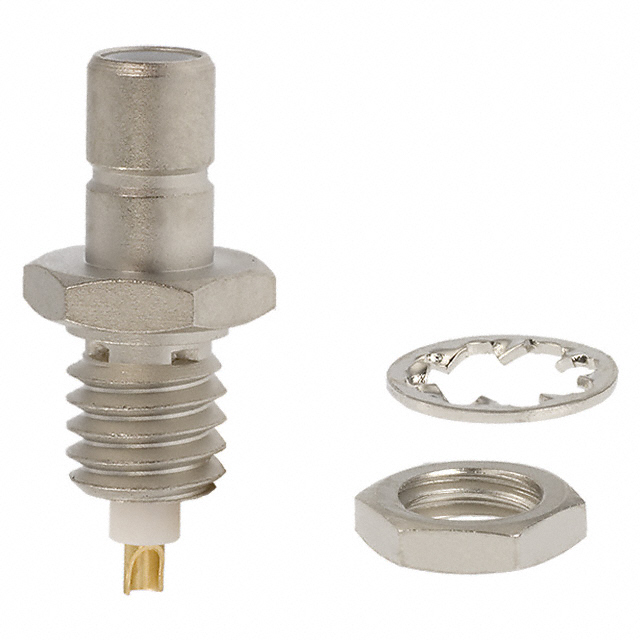

CONN SMB RCPT STR 50 OHM SOLDER
| Part | Impedance | Insertion Loss | Connector Type | Contact Termination | Includes | Fastening Type | Center Contact Plating | Features | Connector Style | Body Material | Shield Termination | Number of Ports | Housing Color | Frequency - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Center Contact Material | Mating Cycles | Dielectric Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 50 Ohms | 0.3 dB | Male Pin Receptacle | Solder Cup | 1 Connector 1 Lockwasher 1 Nut | Snap-On | Gold | Extended Insulation | SMB | Brass | Solder | 1 | Silver | 4 GHz | -65 ░C | 165 °C | Nickel | 335 V | Brass | 500 | Polytetrafluoroethylene (PTFE) | Bulkhead - Rear Side Nut |
