R711FE1 Series
Manufacturer: E-Switch
Beta
⌘K

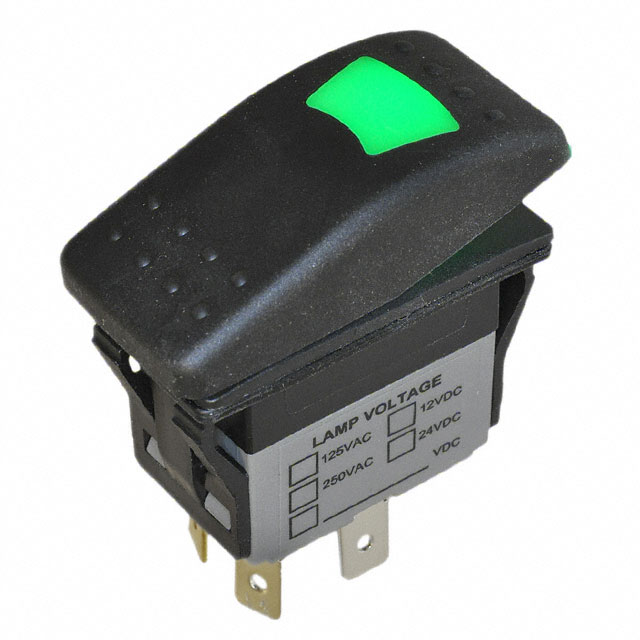

ROCKER; SPST; POS: 2; ON-OFF; 16A/30VDC; BLACK; BLACK; LED; 12V
| Part | Electrical Life | Approval Agency | Switch Function | Termination Style | Actuator Marking | Circuit | Color - Actuator/Cap | Voltage Rating - DC | Mounting Type | Ingress Protection | Actuator Type | Illumination Voltage (Nominal) | Illumination Type, Color | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | cULus | On-Off | Quick Connect - 0.250" (6.3mm) | No Marking | SPST | Black | 30 V | Panel Mount Snap-In | IP67 - Dust Tight Waterproof | Convex (Reverse V) - Illuminated | 12 VDC | Green LED | 16 A | 37 mm | 21.1 mm |
