337-048 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 48POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Read Out	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Contact Type	Flange Feature	Contact Finish	Termination	Pitch	Pitch	Color	Card Type	Number of Rows [custom]	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 337-048-556-808	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Card Extender	0.25 Ám	10 Áin	48	Board Edge Straddle Mount	Cantilever	4-40 Threaded Insert Top Mount Opening	Gold	Solder	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy
EDAC Inc. 337-048-555-802	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Card Extender	0.25 Ám	10 Áin	48	Board Edge Straddle Mount	Cantilever		Gold	Solder Eyelet(s)	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy	3.25 mm	0.128 "

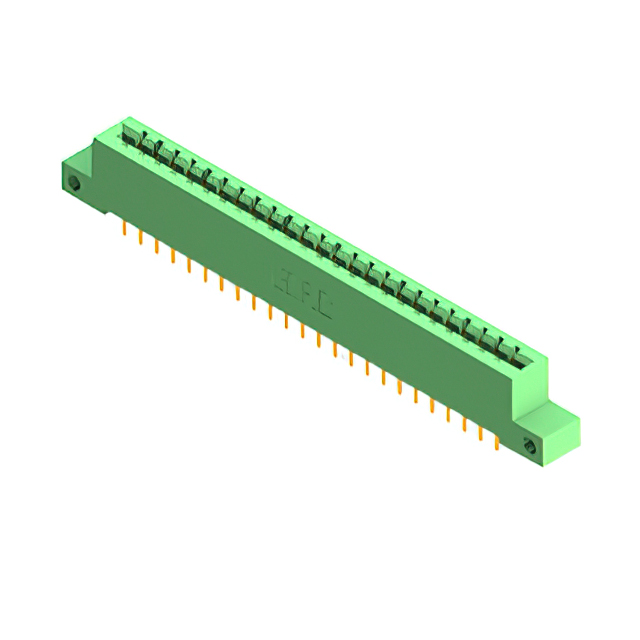

EDAC Inc. 337-048-542-212	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		0.25 Ám	10 Áin	48	Through Hole	Cantilever	Flush Mount Side Opening Unthreaded	Gold	Wire Wrap	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy	3.25 mm	0.128 "
EDAC Inc. 337-048-560-804	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Card Extender	0.25 Ám	10 Áin	48	Board Edge Straddle Mount	Cantilever		Gold	Solder	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy	3.96 mm	0.156 "

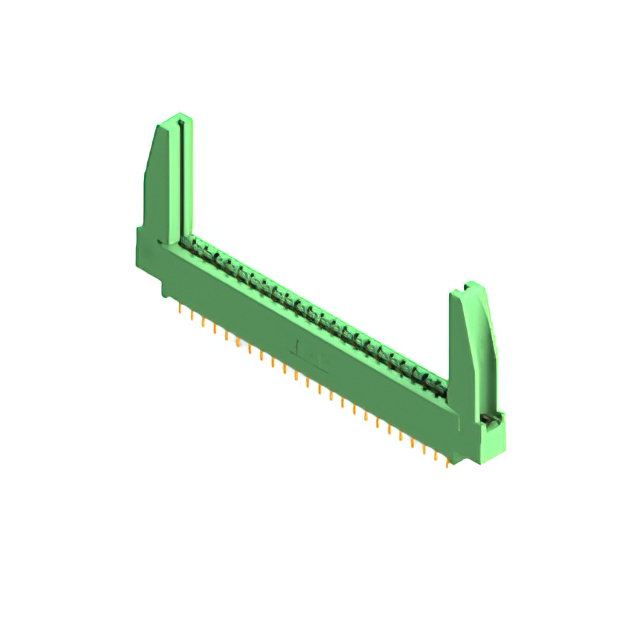

EDAC Inc. 337-048-541-878	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Card Guides	0.25 Ám	10 Áin	48	Through Hole	Cantilever	4-40 Threaded Insert Top Mount Opening	Gold	Wire Wrap	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy
EDAC Inc. 337-048-523-804	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		0.25 Ám	10 Áin	48	Through Hole	Cantilever		Gold	Solder	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy	3.96 mm	0.156 "
EDAC Inc. 337-048-544-804	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		0.25 Ám	10 Áin	48	Through Hole	Cantilever		Gold	Wire Wrap	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy	3.96 mm	0.156 "
EDAC Inc. 337-048-520-803	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		0.25 Ám	10 Áin	48	Through Hole	Cantilever	Floating Bobbin Top Mount Opening	Gold	Solder	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy	2.95 mm	0.116 "
EDAC Inc. 337-048-521-804	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		0.25 Ám	10 Áin	48	Through Hole	Cantilever		Gold	Solder	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy	3.96 mm	0.156 "

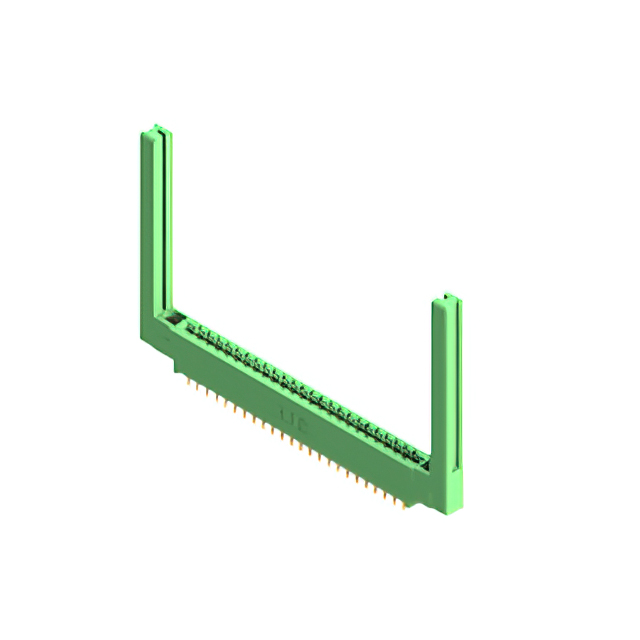

EDAC Inc. 337-048-559-858	Polyester Thermoplastic	2	Female	Dual	24	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C		0.25 Ám	10 Áin	48	Right Angle Through Hole	Cantilever	4-40 Threaded Insert Top Mount Opening	Gold	Wire Wrap	3.96 mm	0.156 in	Green	Non Specified - Dual Edge	2	Copper Alloy
