315-040 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 40POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Flange Feature	Number of Rows [custom]	Contact Material	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Card Type	Number of Positions/Bay/Row	Read Out	Number of Positions	Gender	Pitch	Pitch	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 315-040-500-208	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)	Semi Bellows	-40 C	105 ░C	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in
EDAC Inc. 315-040-555-268	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in	Card Extender Card Guides

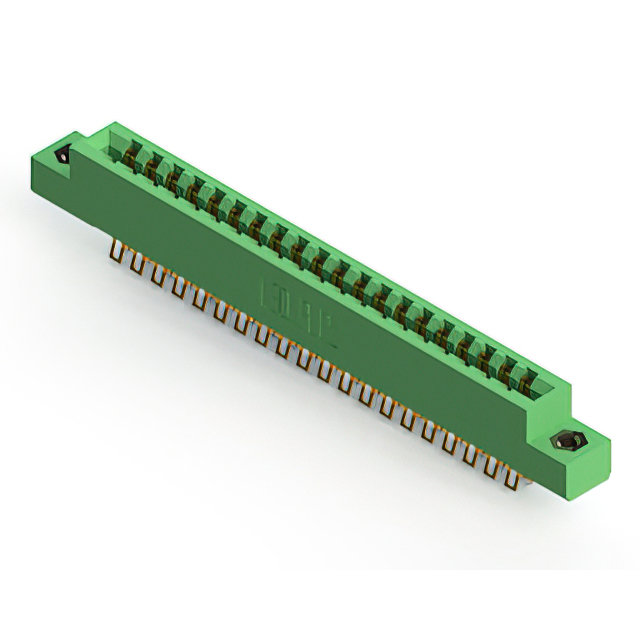

EDAC Inc. 315-040-555-208	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in	Card Extender

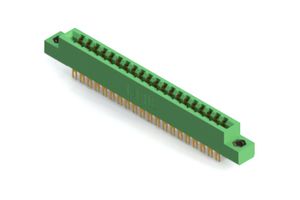

EDAC Inc. 315-040-500-207	Polyester Thermoplastic	2	Flush Mount M3 Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)	Semi Bellows	-40 C	105 ░C	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in
EDAC Inc. 315-040-555-278	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in	Card Extender Card Guides

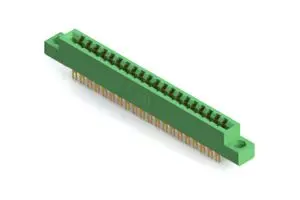

EDAC Inc. 315-040-500-204	Polyester Thermoplastic	2	Flush Mount Top Opening Unthreaded	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)	Semi Bellows	-40 C	105 ░C	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in		0.156 "	3.96 mm
EDAC Inc. 315-040-556-268	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in	Card Extender Card Guides

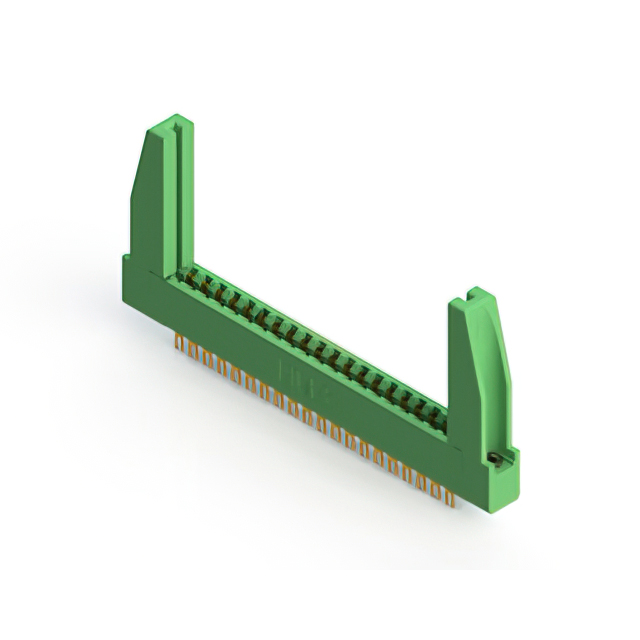

EDAC Inc. 315-040-500-278	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder Eyelet(s)	Semi Bellows	-40 C	105 ░C	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in
EDAC Inc. 315-040-555-258	Polyester Thermoplastic	2	4-40 Flush Mount Threaded Insert Top Opening	2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder	Semi Bellows	-40 C	105 ░C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in	Card Extender Card Guides

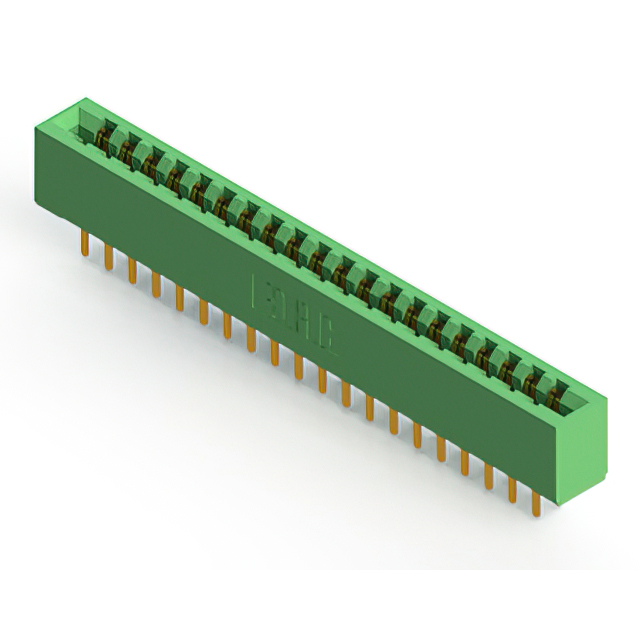

EDAC Inc. 315-040-520-201	Polyester Thermoplastic	2		2	Copper Alloy	Green	0.25 Ám	10 Áin	Gold	Solder	Semi Bellows	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	20 Bay/Row	Dual	40	Female	3.96 mm	0.156 in
