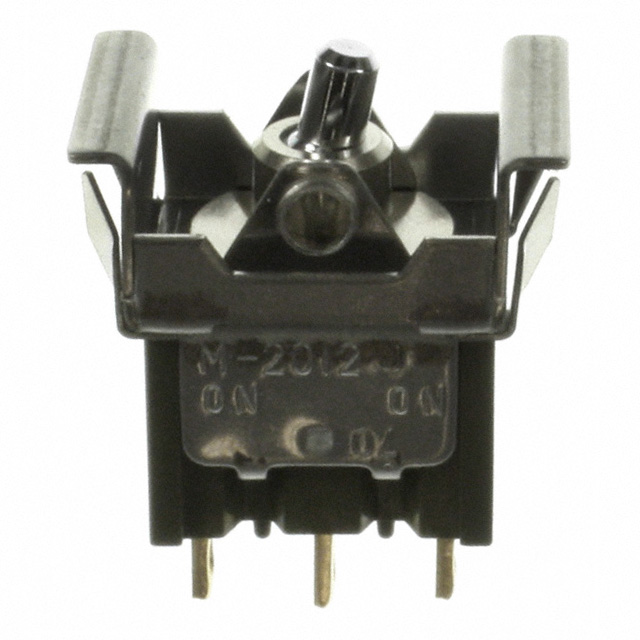

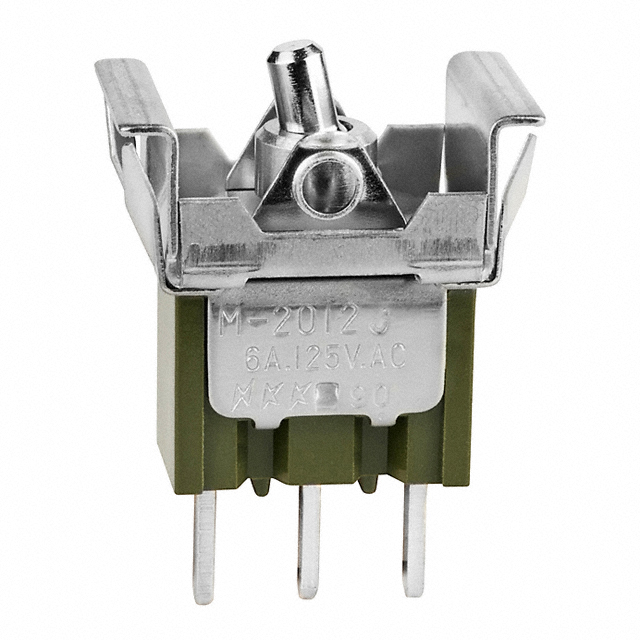

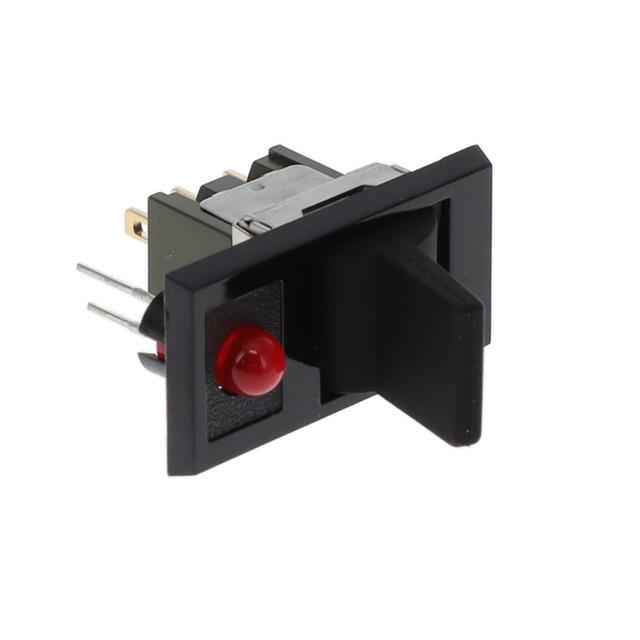

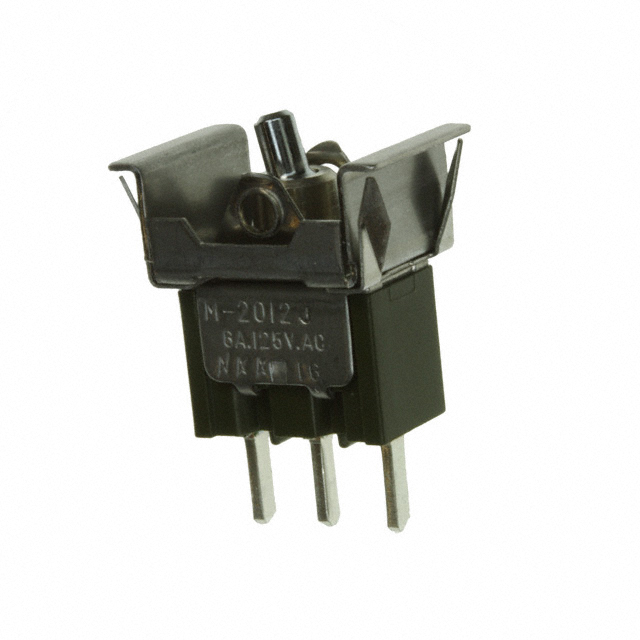

M2012TJ Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Features | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - DC | Circuit | Illumination Voltage (Nominal) | Switch Function | Actuator Type | Termination Style | Illumination Type, Color | Color - Actuator/Cap | Voltage Rating - AC | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | Epoxy Sealed Terminals | 4 A 6 A | 15.9 mm | 18.4 mm | 30 V | SPDT | 2 VDC | On-On | Concave (Standard V) - Illuminated | Solder Lug | LED Red | Black | 125 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL |
 NKK Switches | 25000 Steps | 50000 Cycles | Epoxy Sealed Terminals | 4 A 6 A | 12.5 mm | 15.9 mm | 30 V | SPDT | On-On | Actuator Arm Cap Required | Solder Lug | 125 V | Panel Mount Snap-In | 85 °C | -30 ░C | Varies by Cap | CSA UL | |||
 NKK Switches | 25000 Steps | 50000 Cycles | Epoxy Sealed Terminals | 4 A 6 A | 12.5 mm | 15.9 mm | 30 V | SPDT | On-On | Paddle | Quick Connect - 0.062" (1.5mm) | Black | 125 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL | ||
NKK Switches | 25000 Steps | 50000 Cycles | Epoxy Sealed Terminals | 4 A 6 A | 12.5 mm | 15.9 mm | 30 V | SPDT | 2.8 VDC | On-On | Concave (Standard V) - Illuminated | Solder Lug | LED Red | Black | 125 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL |
NKK Switches | 25000 Steps | 50000 Cycles | Epoxy Sealed Terminals | 4 A 6 A | 12.5 mm | 15.9 mm | 30 V | SPDT | On-On | Concave | Solder Lug | Red | 125 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL | ||
NKK Switches | 50000 Cycles | 50000 Cycles | Epoxy Sealed Terminals | 0.4 VA | 12.5 mm | 15.9 mm | 28 V | SPDT | On-On | Concave | PC Pin | Black | 28 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL | ||
 NKK Switches | 50000 Cycles | 50000 Cycles | Epoxy Sealed Terminals | 0.4 VA | 12.5 mm | 15.9 mm | 28 V | SPDT | On-On | Concave | Solder Lug | Black | 28 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL | ||
NKK Switches | 50000 Cycles | 50000 Cycles | Epoxy Sealed Terminals | 0.4 VA | 12.5 mm | 15.9 mm | 28 V | SPDT | 2.8 VDC | On-On | Concave (Standard V) - Illuminated | Solder Lug | LED Red | Black | 28 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL |
 NKK Switches | 25000 Steps | 50000 Cycles | Epoxy Sealed Terminals | 4 A 6 A | 12.5 mm | 15.9 mm | 30 V | SPDT | 2.8 VDC | On-On | Paddle - Illuminated | Solder Lug | LED Red | Black | 125 V | Panel Mount Snap-In | 85 °C | -30 ░C | No Marking | CSA UL |
 NKK Switches | 25000 Steps | 50000 Cycles | Epoxy Sealed Terminals | 4 A 6 A | 12.5 mm | 15.9 mm | 30 V | SPDT | On-On | Actuator Arm Cap Required | Quick Connect - 0.062" (1.5mm) | 125 V | Panel Mount Snap-In | 85 °C | -30 ░C | Varies by Cap | CSA UL |
