THS4022 Series

Catalog

IC OPAMP VFB 2 CIRCUIT 8HVSSOP

Part	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Voltage - Input Offset	Amplifier Type	Package / Case	Package / Case [custom]	Mounting Type	Slew Rate	Supplier Device Package	Current - Output / Channel	Gain Bandwidth Product	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Number of Circuits	Current - Supply	Package / Case [y]	Package / Case [x]	Board Type	Output Type	Current - Supply (Main IC)	Supplied Contents	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Channels per IC	Utilized IC / Part
Texas Instruments THS4022IDGN	85 °C	-40 °C	350 MHz	500 çV	Voltage Feedback	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Surface Mount	470 V/µs	8-HVSSOP	100 mA	350 MHz	3 µA	32 V	2	7.8 mA
Texas Instruments THS4022CD	70 °C	0 °C	350 MHz	500 çV	Voltage Feedback	8-SOIC		Surface Mount	470 V/µs	8-SOIC	100 mA	350 MHz	3 µA	32 V	2	7.8 mA	3.9 mm	0.154 in
Texas Instruments THS4022ID	85 °C	-40 °C	350 MHz	500 çV	Voltage Feedback	8-SOIC		Surface Mount	470 V/µs	8-SOIC	100 mA	350 MHz	3 µA	32 V	2	7.8 mA	3.9 mm	0.154 in
Texas Instruments THS4022IDGNR	85 °C	-40 °C	350 MHz	500 çV	Voltage Feedback	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Surface Mount	470 V/µs	8-HVSSOP	100 mA	350 MHz	3 µA	32 V	2	7.8 mA
Texas Instruments THS4022CDGNG4	70 °C	0 °C	350 MHz	500 çV	Voltage Feedback	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Surface Mount	470 V/µs	8-HVSSOP	100 mA	350 MHz	3 µA	32 V	2	7.8 mA
Texas Instruments THS4022CDGN	70 °C	0 °C	350 MHz	500 çV	Voltage Feedback	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	Surface Mount	470 V/µs	8-HVSSOP	100 mA	350 MHz	3 µA	32 V	2	7.8 mA

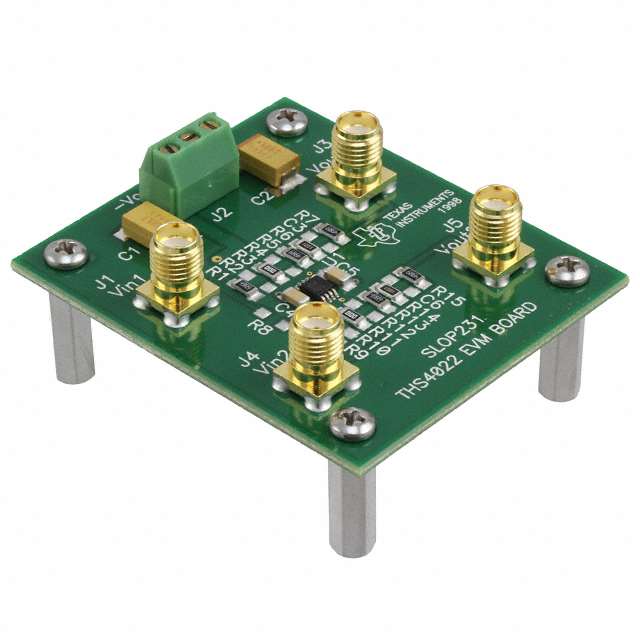

Texas Instruments THS4022EVM			350 MHz		Voltage Feedback				470 V/µs		100 mA								Fully Populated	Single-Ended	7.8 mA	Board(s)	16 V 32 V	-4.5 V 9 V	2 - Dual	THS4022
