9422-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

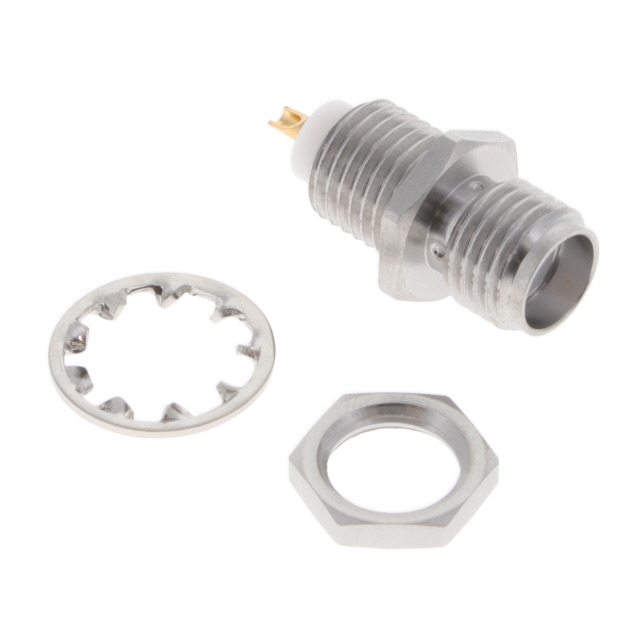

SMA F STR BHD SP
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Body Material | Includes | Mounting Type | Connector Type | Shield Termination | Fastening Type | Contact Termination | Frequency - Max [Max] | Impedance | Center Contact Material | Number of Ports | Connector Style | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 1 Connector 1 Lockwasher 1 Nut | Panel Mount | Female Socket Jack | Solder | Threaded | Solder Cup | 18 GHz | 50 Ohms | Beryllium Copper | 1 | SMA | Bulkhead - Rear Side Nut |
