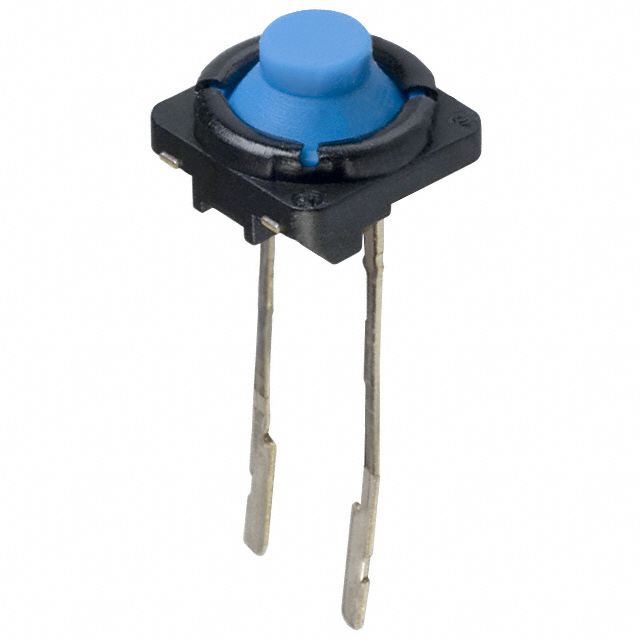

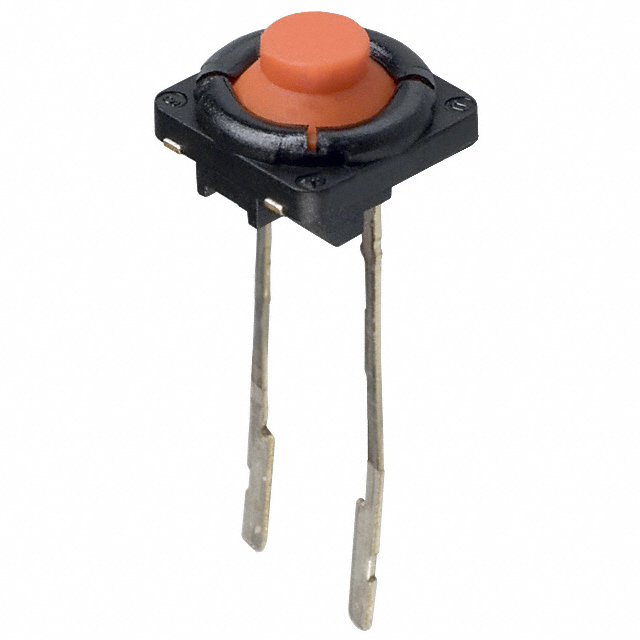

EVQ-QJ Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACT SPST-NO 0.005A 12V
| Part | Mounting Type | Circuit | Switch Travel | Switch Function | Termination Style | Contact Rating @ Voltage | Actuator Type | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Actuator Orientation | Outline [y] | Outline [x] | Actuator Height off PCB, Vertical [z] | Illumination | Actuator Height off PCB, Vertical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Through Hole | SPST-NO | 1.2 mm | Off-Mom | PC Pin | 0.005 A 12 VDC | Standard | 0.25 kgf | -20 C | 70 °C | 100000 Cycles | Top Actuated | 8 mm | 8 mm | 5.5 mm | Non-Illuminated | |
 Panasonic Industrial Automation Sales | Through Hole | SPST-NO | 1 mm | Off-Mom | PC Pin | 0.005 A 12 VDC | Standard | 130 gf | -20 C | 70 °C | 100000 Cycles | Top Actuated | 8 mm | 8 mm | Non-Illuminated | 5 mm |
