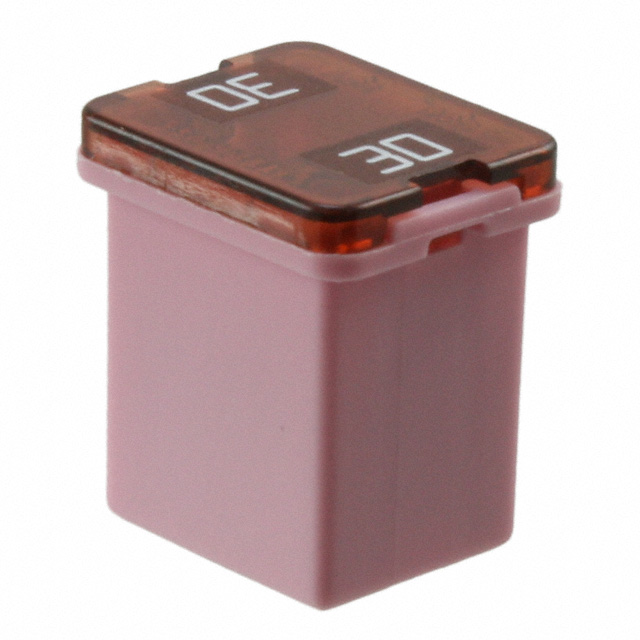

0895030 Series

Fuse - LP JCase 58VDC, 30A 2000 pc

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - LP JCase 58VDC, 30A 2000 pc

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color	Fuse Type	Approval Agency	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Package / Case	DC Cold Resistance	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 0895030.Z	125 °C	-40 °C	Requires Holder	Pink	Automotive	UL	1 kA	58 VDC	Auto Link	0.00268 Ohms	0.63 in	12 mm	0.472 "	0.571 in	16 mm	14.5 mm	30 A

Catalog

Fuse - LP JCase 58VDC, 30A 2000 pc

Description

The Low Profile JCASE fuse has similar performance characteristics as the standard JCASE fuse. The lower overall height reduction allows for more space and weight savings and also allows for a shorter male blade terminal, saving additional weight and material savings in fuse box diagram.
