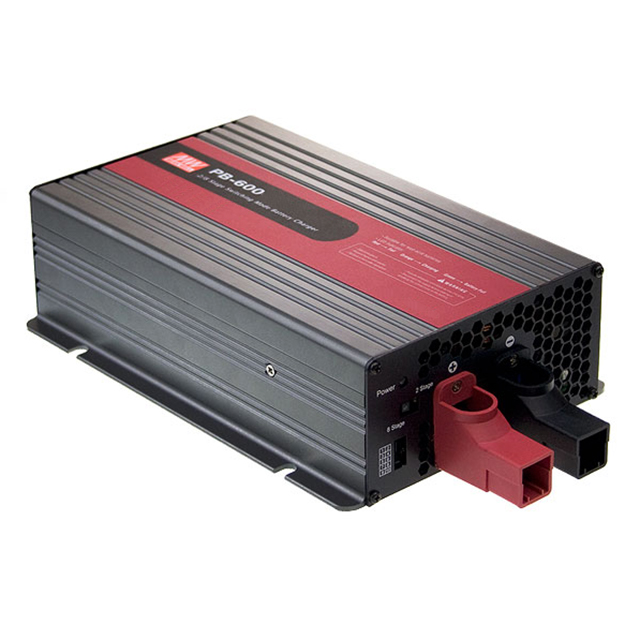

PB-600 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
BATT CHARGER ENCLOSED 28.8V 21A
| Part | Approval Agency | Weight | Operating Temperature [Min] | Operating Temperature [Max] | Power - Max [Max] | Battery Chemistry [custom] | Charge Current - Max [Max] | Battery Cell Size | Voltage - Input [Max] | Voltage - Input [Min] | Features | Type | Termination Style | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Nominal | Number of Cells |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | CE TUV UR | 2200 g | -20 ░C | 60 °C | 600 W | Lead Acid Lithium-Ion | 21 A | 24 V | 264 VAC 370 VDC | 90 VAC 127 VDC | LED Indicator | Enclosed | Screw Terminal | Chassis Mount | 158 mm | 67 mm | 230 mm | 2.64 in | 9.06 " | 6.22 in | 28.8 V | 1 |
MEAN WELL USA Inc. | CE TUV UR | 2200 g | -20 ░C | 60 °C | 600 W | Lead Acid Lithium-Ion | 40 A | 12 V | 264 VAC 370 VDC | 90 VAC 127 VDC | LED Indicator | Enclosed | Screw Terminal | Chassis Mount | 158 mm | 67 mm | 230 mm | 2.64 in | 9.06 " | 6.22 in | 14.4 V | 1 |
