A-HDF 15 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB F 15 POS SOLDER ST THRU-HOLE 15 TERMINAL 1 PORT TRAY
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Material Flammability Rating | Connector Type | Termination | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Number of Positions | Current Rating (Amps) | Flange Feature | Contact Finish Thickness | Contact Finish | Contact Type | Number of Rows [custom] | Wire Gauge [Min] | Wire Gauge [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

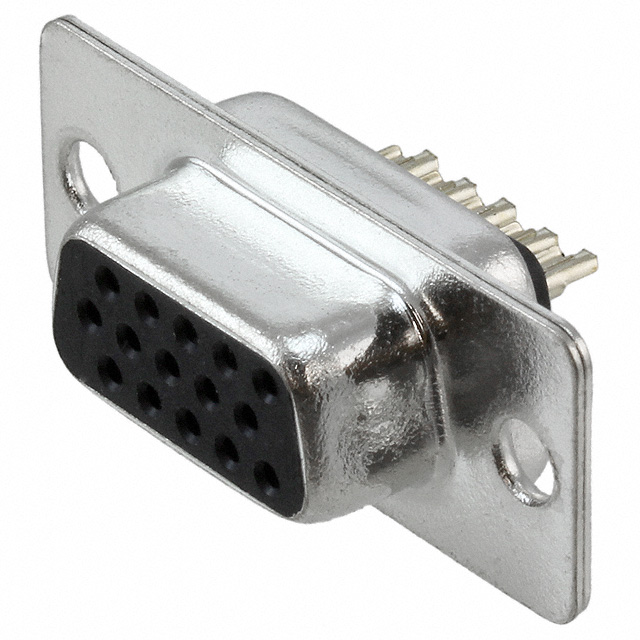

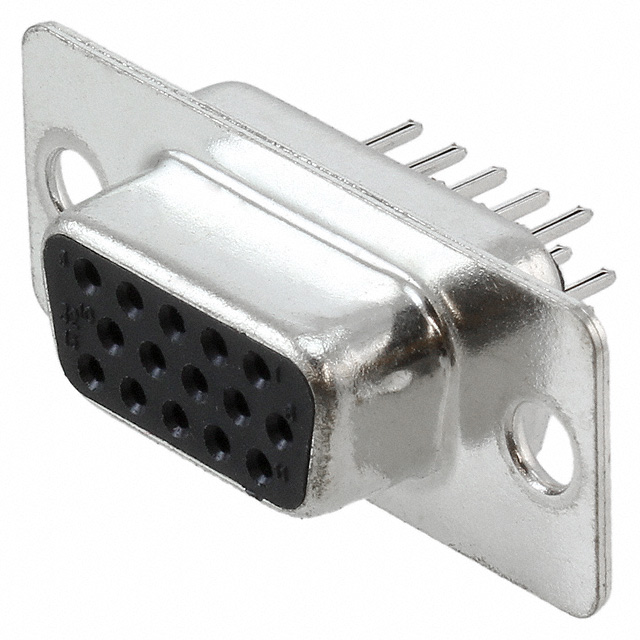

 Assmann WSW Components | Black | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -20 ░C | 250 V | UL94 V-0 | Receptacle Female Sockets | Solder | Through Hole | (DE E) High Density | 1 | D-Sub High Density | 15 | 3 A | Housing/Shell (Unthreaded) | Flash | Gold | Signal | 3 | |||
 Assmann WSW Components | Black | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -20 ░C | 250 V | UL94 V-0 | Receptacle Female Sockets | Free Hanging (In-Line) | (DE E) High Density | 1 | D-Sub High Density | 15 | 3 A | Housing/Shell (Unthreaded) | Flash | Gold | Signal | 3 | ||||

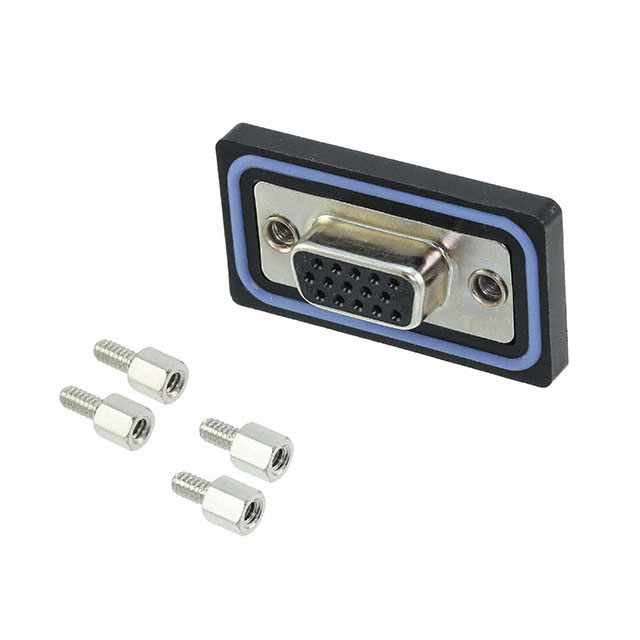

 Assmann WSW Components | Black | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Receptacle Female Sockets | Panel Mount | (DE E) High Density | 1 | D-Sub High Density | 15 | Female Screwlock Mating Side | Gold | Signal | 3 | 24 AWG | 28 AWG | IP67 - Dust Tight Waterproof |
