D4F-120 Series

Catalog

SWITCH SNAP ACTION DPST 15A 120V

Part	Switch Function	Features	Electrical Life	Current Rating (Amps)	Release Force	Pretravel	Termination Style	Overtravel	Actuator Type	Operating Force	Ingress Protection	Mechanical Life	Voltage Rating - AC	Circuit	Voltage Rating - DC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features

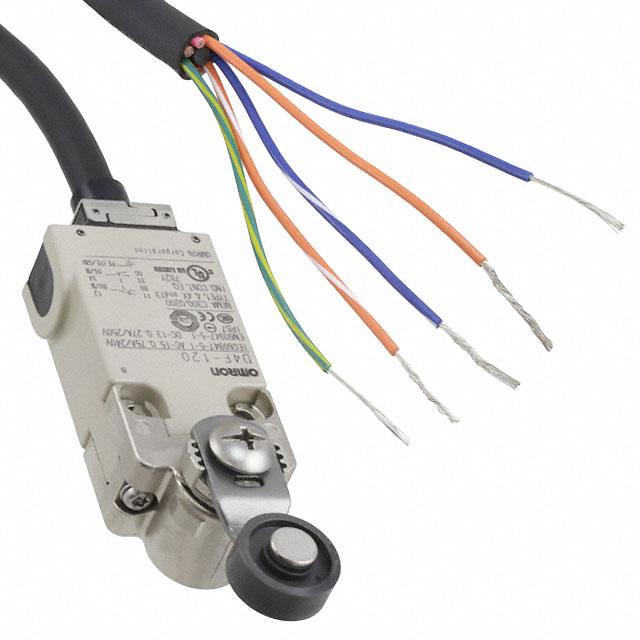

Omron Electronics Inc-EMC Div D4F-120-1D	Off-Mom On-Mom	Cable Length 1m	150000 Cycles	15 A 550 mA	51 gf	12 °	Cable Leads	40 °	Roller Side Rotary	510 gf	IP67 - Dust Tight Waterproof	10000000 Cycles	120 V	DPST-NO/NC	125 VDC	Chassis Mount	70 °C	-30 ░C

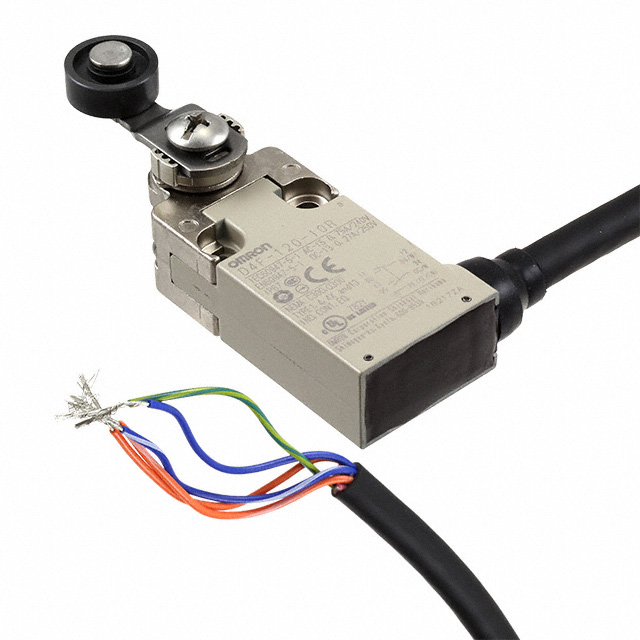

Omron Electronics Inc-EMC Div D4F-120-10R	Off-Mom On-Mom	Cable Length 10m	150000 Cycles	15 A 550 mA	51 gf	12 °	Cable Leads	40 °	Roller Side Rotary	510 gf	IP67 - Dust Tight Waterproof	10000000 Cycles	120 V	DPST-NO/NC	125 VDC	Chassis Mount	70 °C	-30 ░C
Omron Electronics Inc-EMC Div D4F-120-3D	Off-Mom On-Mom		150000 Cycles	15 A 550 mA	51 gf	12 °	Cable Leads	40 °	Roller Side Rotary	510 gf	IP67 - Dust Tight Waterproof	10000000 Cycles	120 V	DPST-NO/NC	125 VDC	Chassis Mount	70 °C	-30 ░C	3 m

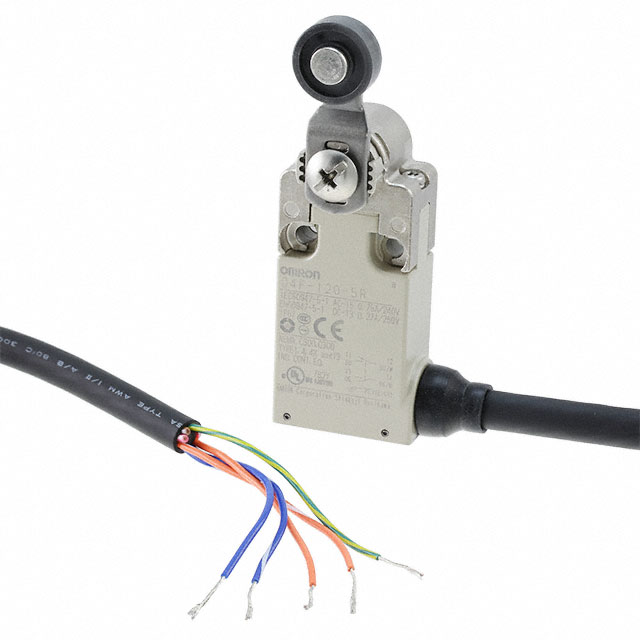

Omron Electronics Inc-EMC Div D4F-120-3R	Off-Mom On-Mom		150000 Cycles	15 A 550 mA	51 gf	12 °	Cable Leads	40 °	Roller Side Rotary	510 gf	IP67 - Dust Tight Waterproof	10000000 Cycles	120 V	DPST-NO/NC	125 VDC	Chassis Mount	70 °C	-30 ░C	3 m
Omron Electronics Inc-EMC Div D4F-120-5D	Off-Mom On-Mom	Cable Length 5m	150000 Cycles	15 A 550 mA	51 gf	12 °	Cable Leads	40 °	Roller Side Rotary	510 gf	IP67 - Dust Tight Waterproof	10000000 Cycles	120 V	DPST-NO/NC	125 VDC	Chassis Mount	70 °C	-30 ░C
