5690112 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM BI-LVL GREEN/RED RA

Part	Lens Type	Color	Mounting Type	Viewing Angle	Wavelength - Peak	Voltage Rating	Millicandela Rating	Configuration	Lens Size [diameter]	Current	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Size	Lens Size	Viewing Angle [custom]	Viewing Angle [custom]

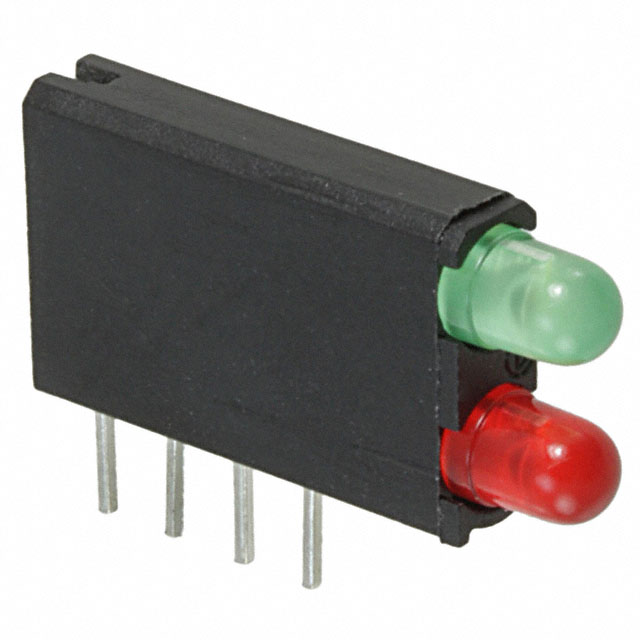

DIALIGHT 5690112100F	Diffused Tinted	Green (x 1) Red (x 1)	Right Angle Through Hole	60 °	565 nm 635 nm	2 V 2.1 V	10 mcd 12.6 mcd	2 High	3 mm	20 mA	Round with Domed Top
DIALIGHT 5690112000F	Diffused Tinted	Blank (x 1) Green (x 1)	Right Angle Through Hole	60 °	565 nm	2.1 V	12.6 mcd	2 High	3 mm	20 mA	Round with Domed Top

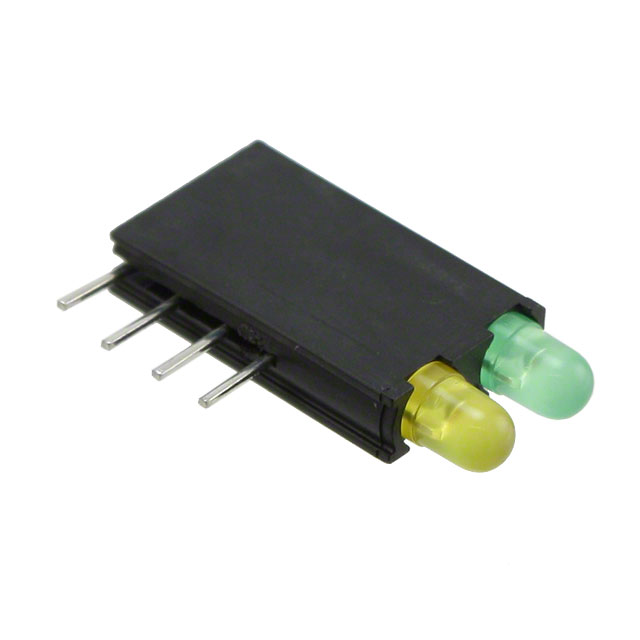

DIALIGHT 5690112300F	Diffused Tinted	Green (x 1) Yellow (x 1)	Right Angle Through Hole	60 °	565 nm 585 nm	2.1 V		2 High		20 mA	Round with Domed Top	12.6 mcd	10 mcd	3 mm	T-1
DIALIGHT 5690112802F	Diffused Tinted	Blue (x 1) Green (x 1)	Right Angle Through Hole		428 nm 565 nm	2.1 V 3.5 V	12 mcd 12.6 mcd	2 High	3 mm	20 mA	Round with Domed Top					60 °	70 °
DIALIGHT 5690112700F	Diffused Tinted	Green (x 1) Orange (x 1)	Right Angle Through Hole	60 °	565 nm 600 nm	1.9 V 2.1 V	7.4 mcd 12.6 mcd	2 High		25 mA 30 mA	Round with Domed Top			3 mm	T-1
