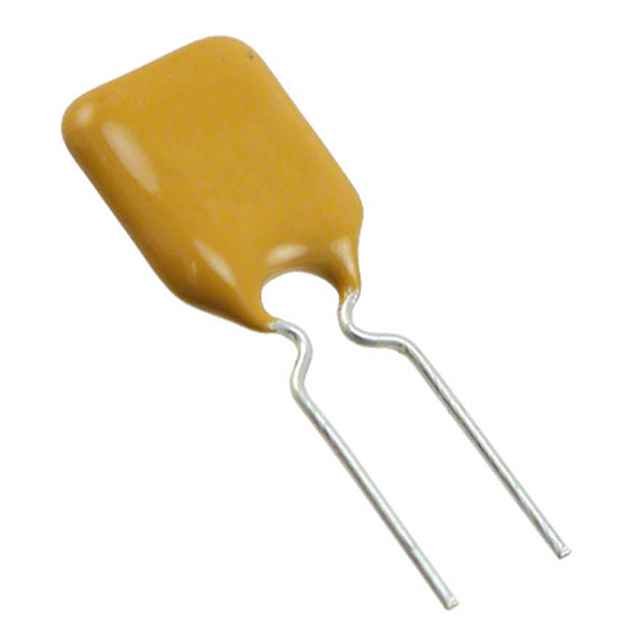

30R135 Series

PTC 30V POLYFUSE AMMO RADIAL LEADS 1.35A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

PTC 30V POLYFUSE AMMO RADIAL LEADS 1.35A

Part	Package / Case	Mounting Type	Current - Trip (It)	Approval Agency	Type	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance - Initial (Ri) (Min) [Min]	Lead Spacing	Lead Spacing	Voltage - Max [Max]
Littelfuse/Commercial Vehicle Products 30R135UU	Disc Radial	Through Hole	2.7 A	cURus TUV	Polymeric	40 A	0.118 in	3 mm	0.35 in	8.9 mm	130 mOhms	1.35 A	85 °C	-40 °C	7.3 s	0.532 "	13.5 mm	40 mOhms	5.1 mm	0.201 in	30 V
Littelfuse/Commercial Vehicle Products 30R135UPR	Disc Radial	Through Hole	2.7 A	cURus TUV	Polymeric	40 A	0.118 in	3 mm	0.35 in	8.9 mm	130 mOhms	1.35 A	85 °C	-40 °C	7.3 s	0.532 "	13.5 mm	40 mOhms	5.1 mm	0.201 in	30 V

Catalog

PTC 30V POLYFUSE AMMO RADIAL LEADS 1.35A

Key Features

• Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements

• Fast time-to-trip

• Lead-free, halogen-free, and RoHS compliant

Description

The 30R series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred.
