9350007 Series

Catalog

MS2,192,14,20,15,25,11,W8

Part	Qmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Delta Tmax @ Th	Voltage - Max [Max]	Features	Number of Stages	Operating Temperature	Current - Max [Max]

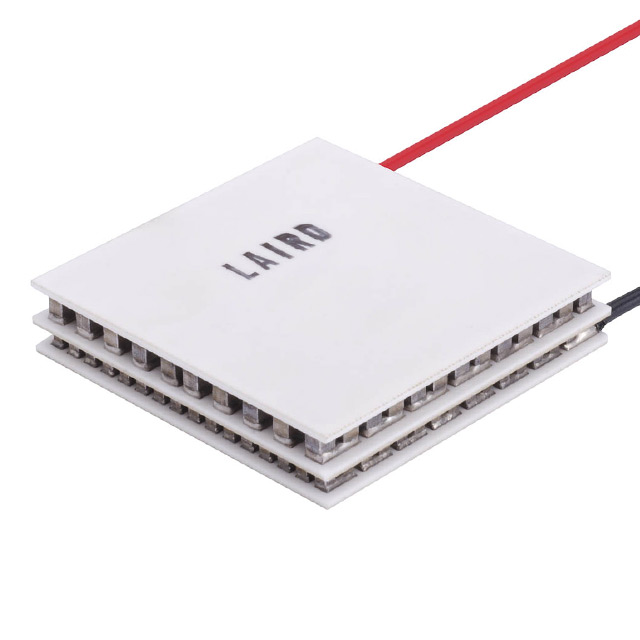

Laird Thermal Systems, Inc. 9350007-301	27 W	40 mm	40 mm	8.1 mm	88 °C	16.1 V	Lead Wires Non-Sealed	2	80 °C	4.5 A

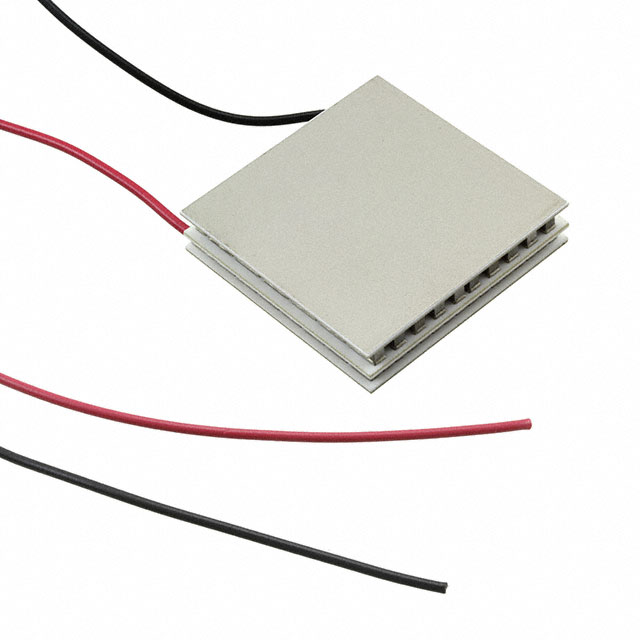

Laird Thermal Systems, Inc. 9350007-304	27 W	40 mm	40 mm	8.31 mm	88 °C	16.1 V	Lead Wires Non-Sealed	2	80 °C	4.5 A
Laird Thermal Systems, Inc. 9350007-302	27 W	40 mm	40 mm	8.1 mm	88 °C	16.1 V	Lead Wires Sealed - Silicone RTV	2	80 °C	4.5 A
