842-013 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 13POS 0.100

Part	Material - Insulation	Termination Rows	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Read Out	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Gender	Color	Flange Feature	Pitch	Pitch	Termination	Contact Material	Contact Type	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

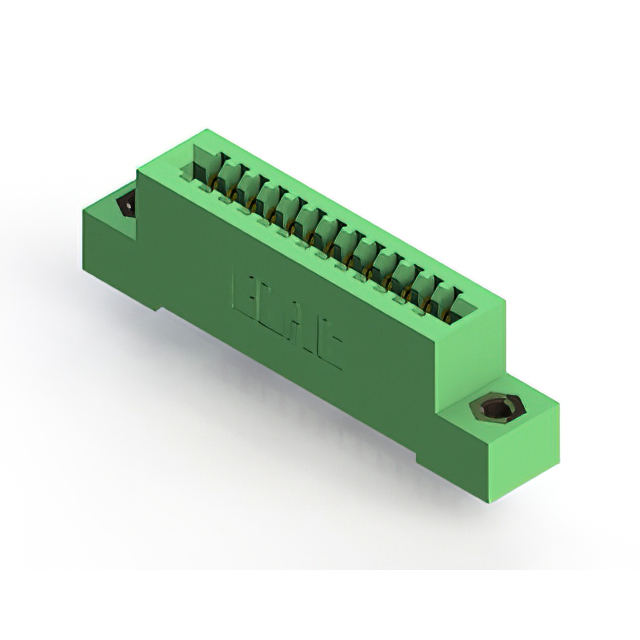

EDAC Inc. 842-013-524-107	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Flush Mount M3 Threaded Insert Top Opening	0.1 "	2.54 mm	Solder	Copper Alloy	Cantilever	1

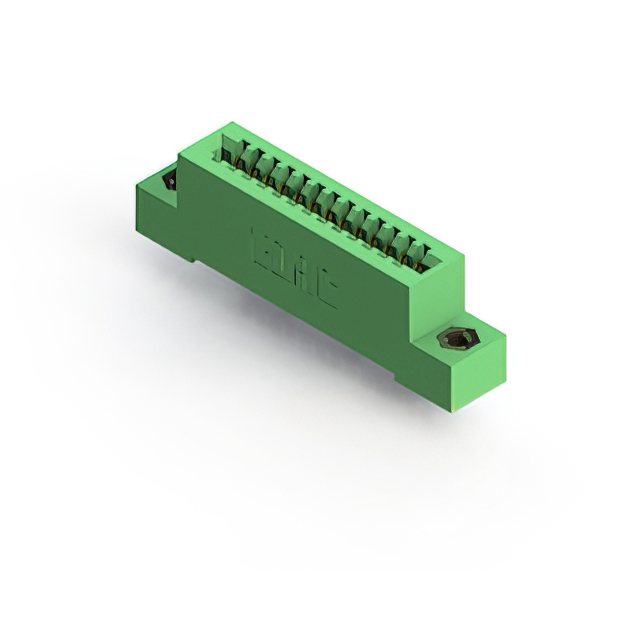

EDAC Inc. 842-013-544-108	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	4-40 Flush Mount Threaded Insert Top Opening	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	Cantilever	1

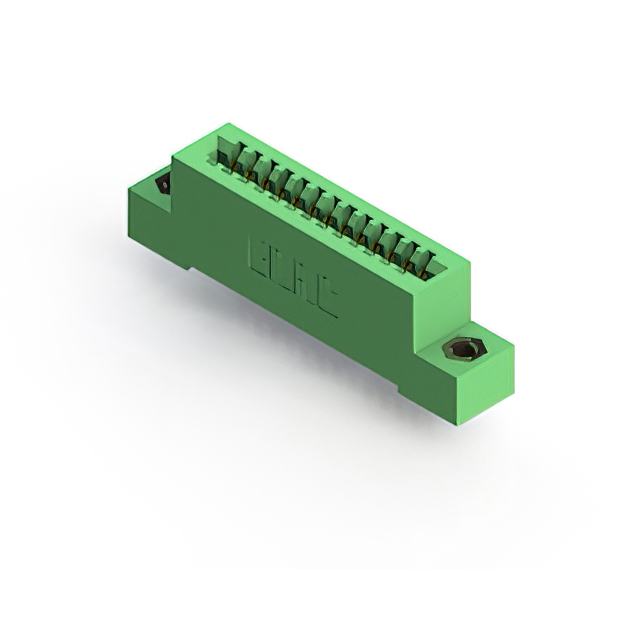

EDAC Inc. 842-013-542-107	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Flush Mount M3 Threaded Insert Top Opening	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	Cantilever	1
EDAC Inc. 842-013-542-108	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	4-40 Flush Mount Threaded Insert Top Opening	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	Cantilever	1

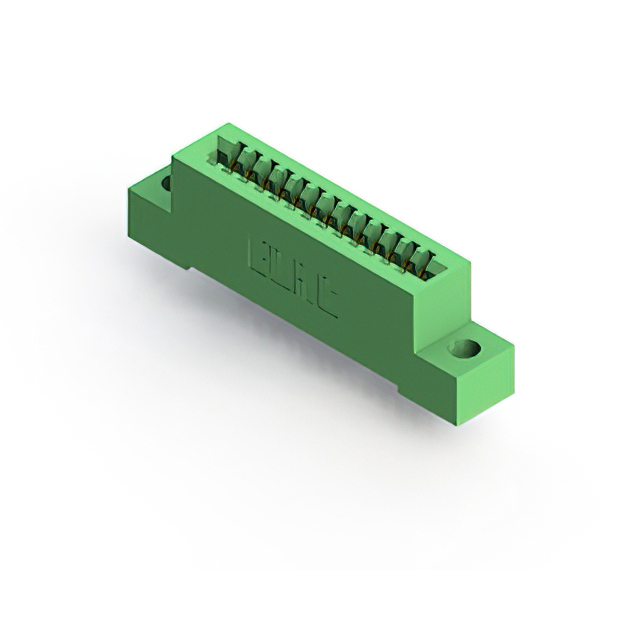

EDAC Inc. 842-013-542-104	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	Cantilever	1	0.156 "	3.96 mm
EDAC Inc. 842-013-544-103	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Floating Bobbin Flush Mount	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	Cantilever	1	0.116 "	2.95 mm

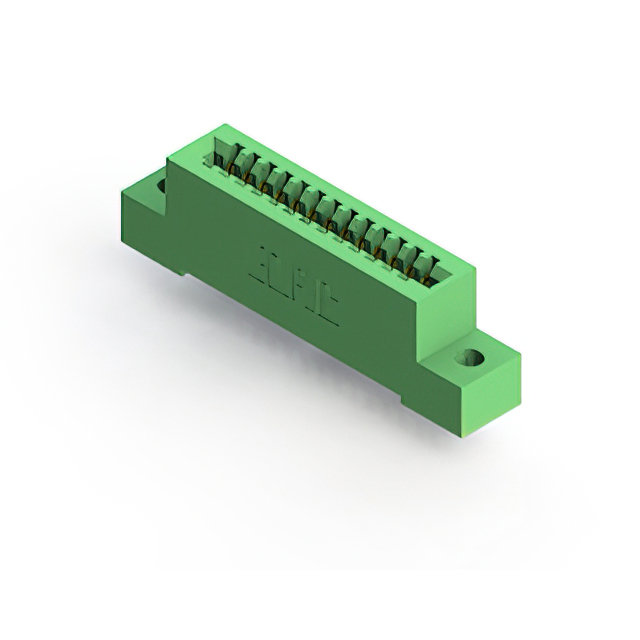

EDAC Inc. 842-013-540-102	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	Cantilever	1	0.128 "	3.25 mm

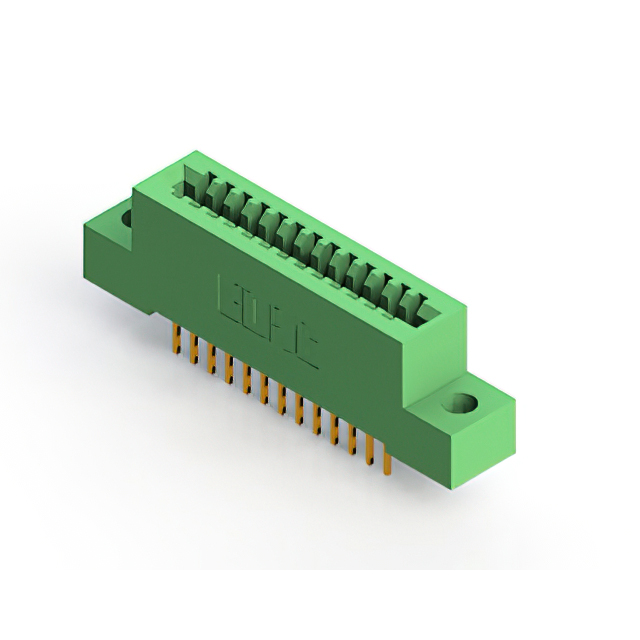

EDAC Inc. 842-013-558-104	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Right Angle Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm	Solder	Copper Alloy	Cantilever	1	0.156 "	3.96 mm
EDAC Inc. 842-013-541-107	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Flush Mount M3 Threaded Insert Top Opening	0.1 "	2.54 mm	Wire Wrap	Copper Alloy	Cantilever	1

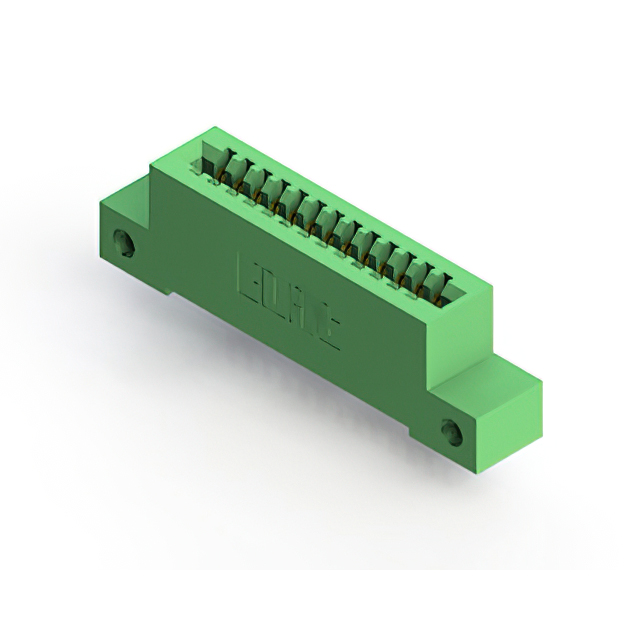

EDAC Inc. 842-013-520-112	Diallyl Phthalate (DAP)	1	13	125 °C	-40 C	Through Hole	Single	Non Specified - Single Edge	0.25 Ám	10 Áin	Gold	13	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Green	Flush Mount Side Opening Unthreaded	0.1 "	2.54 mm	Solder	Copper Alloy	Cantilever	1	0.128 "	3.25 mm
