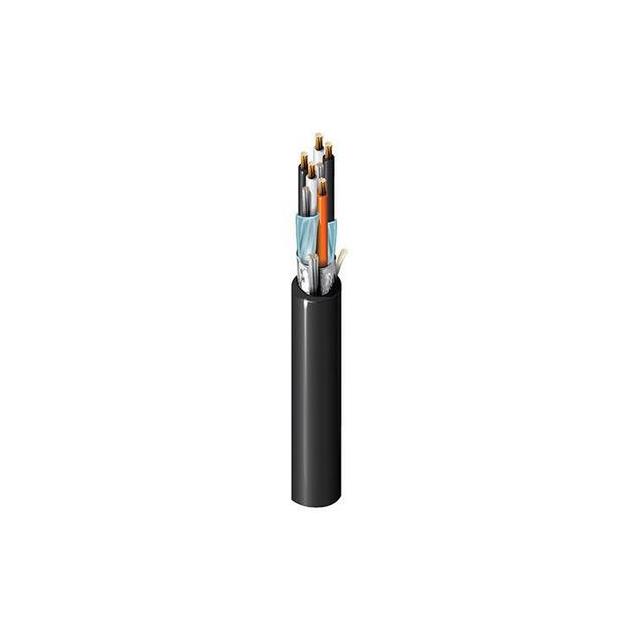

1474A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 5COND 18/22AWG
| Part | Shield Coverage | Shield Material | Cable Type | Shield Type | Features | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Usage | Length | Length [x] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Voltage | Ratings | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Multi-Pair | Foil | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | 5 Conductors | 10.41 mm | 0.41 in | -30 ░C | 105 ░C | 18 AWG 22 AWG | Instrumentation | 2286 m | 7500 ft | Blue | 7 | 26 AWG 30 AWG | Copper Bare | 300 VDC | UL Style 2464 | Poly-Vinyl Chloride (PVC) |
