9331 Series
Manufacturer: Belden Inc.
Beta
⌘K

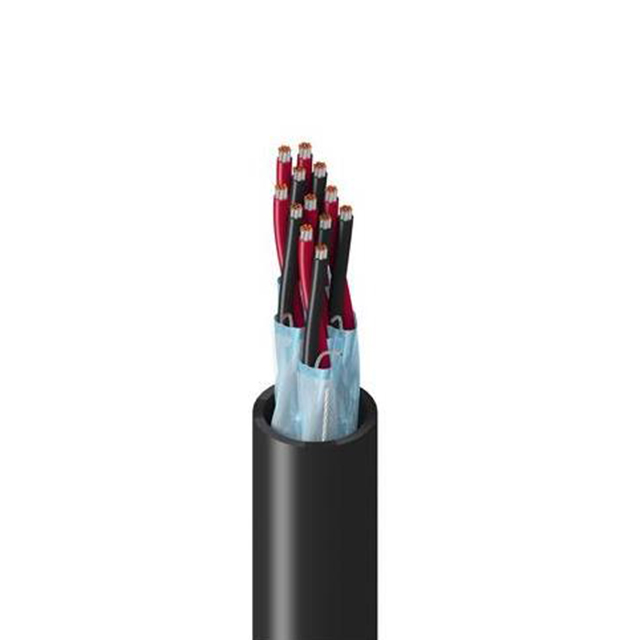

MULTI-PAIR 12COND 22AWG
| Part | Shield Coverage | Shield Material | Number of Conductors | Features | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Jacket Color | Shield Type | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 12 | Direct Burial Drain Wire Ripcord UV Resistant | Poly-Vinyl Chloride (PVC) | 11.61 mm | 0.457 in | Audio Control Instrumentation | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | Chrome | Foil | Multi-Pair | 304.8 m | 1000 ft | 30 AWG | 7 | UL Style 2464 | 22 AWG | -30 ░C | 105 ░C | Copper Tinned |
Belden Inc. | 100 % | Aluminum | 12 | Direct Burial Drain Wire Ripcord UV Resistant | Poly-Vinyl Chloride (PVC) | 11.61 mm | 0.457 in | Audio Control Instrumentation | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | Chrome | Foil | Multi-Pair | 152.4 m | 500 ft | 30 AWG | 7 | UL Style 2464 | 22 AWG | -30 ░C | 105 ░C | Copper Tinned |
