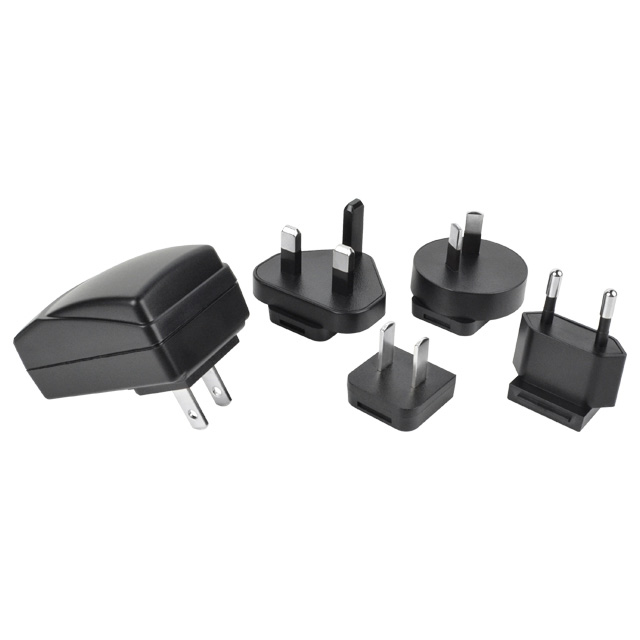

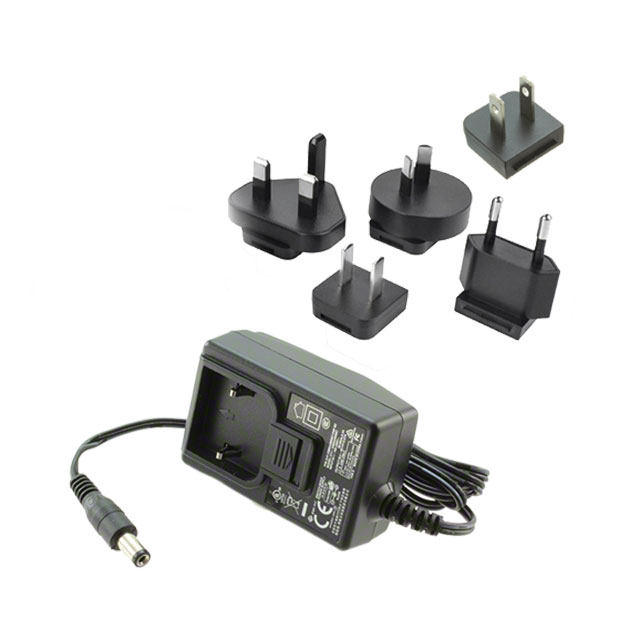

SMI6-5 Series

Manufacturer: CUI Inc.

Catalog

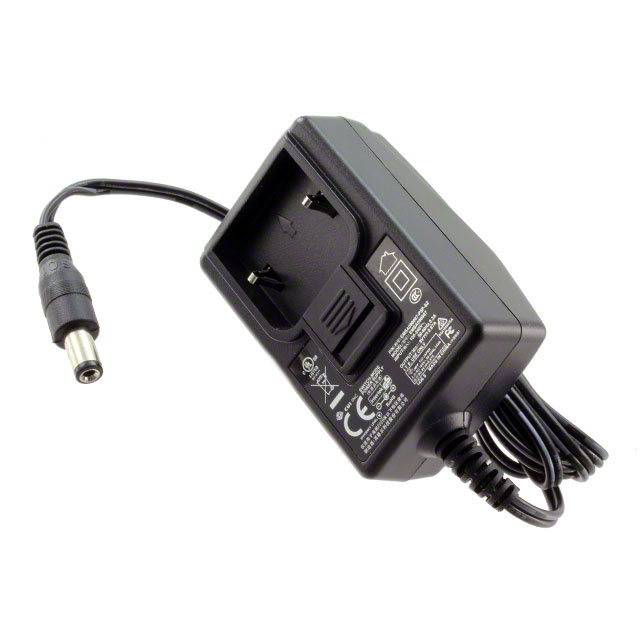

AC/DC WALL MOUNT ADAPTER 5V 6W

Part	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Input Connector	Region Utilized	Operating Temperature [Max]	Voltage - Output	Standard Number	Input Type	Current - Output (Max) [Max]	Approval Agency	Output Connector [diameter]	Output Connector	Output Connector [z]	Weight [custom]	Weight [custom]	No Load Power Consumption	Polarization	Form	Power (Watts)	Efficiency	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [x]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
CUI Inc. SMI6-5-K-P6R	60.2 in	1.53 m	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade	International	40 °C	5 V	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	Multi-Blade (Sold Separately)	1.2 A	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	69.4 g	0.153 lb	100 mW	Positive Center	Wall Mount	6 W	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC
CUI Inc. SMI6-5-V-P5	60.2 in	1.53 m	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade	International	40 °C	5 V	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	Multi-Blade (Included)	1.2 A	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	2.1 mm 5.5 mm	Barrel Plug		69.4 g	0.153 lb	100 mW	Positive Center	Wall Mount	6 W	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	9.5 mm
CUI Inc. SMI6-5-V-P5R	60.2 in	1.53 m	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade	International	40 °C	5 V	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	Multi-Blade (Included)	1.2 A	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL		Barrel Plug R/A		69.4 g	0.153 lb	100 mW	Positive Center	Wall Mount	6 W	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC		9.5 mm	5.5 mm	2.1 mm
CUI Inc. SMI6-5-K-P5R	60.2 in	1.53 m	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade	International	40 °C	5 V	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	Multi-Blade (Sold Separately)	1.2 A	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL		Barrel Plug R/A		69.4 g	0.153 lb	100 mW	Positive Center	Wall Mount	6 W	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC		9.5 mm	5.5 mm	2.1 mm
CUI Inc. SMI6-5-V-P12	60.2 in	1.53 m	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade (Included)	International	40 °C	5 V	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	Multi-Blade (Included)	1.2 A	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	0.7 mm 2.35 mm	Barrel Plug				100 mW	Positive Center	Wall Mount	6 W	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	9.5 mm
CUI Inc. SMI6-5-V-P6	60.2 in	1.53 m	1.59 "	40.5 mm	30 mm	2.52 "	1.18 in	64 mm	Multi-Blade	International	40 °C	5 V	C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3; 62368-1	Multi-Blade (Included)	1.2 A	CB Scheme CCC CSA EAC EN FCC IEC KC RCM SIQ TUV UL	2.5 mm 5.5 mm	Barrel Plug		69.4 g	0.153 lb	100 mW	Positive Center	Wall Mount	6 W	CoC Tier 2 Level VI	ITE (Commercial)	264 VAC	90 VAC	9.5 mm
