M3423 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

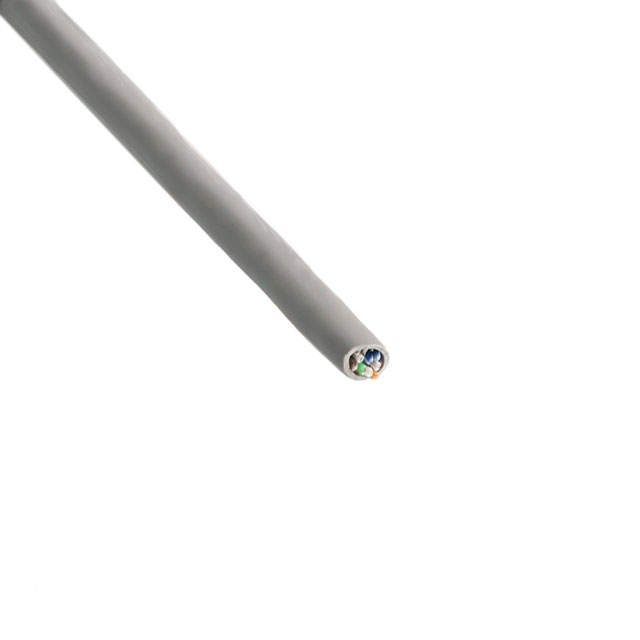

MULTI-CONDUCTOR CABLES 24 AWG 5 PAIR COMMUNICATION CABLES, FOIL/BRAID, 100 FT - SLATE
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Material | Features | Conductor Insulation | Conductor Material | Ratings | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -20 ░C | 24 AWG | 10 | 0.035 in | 0.889 mm | 300 VDC | Braid Foil | 0.314 in | 7.98 mm | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Polypropylene (PP) | Copper Tinned | UL Style 2919 | Slate | 7 | 32 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -20 ░C | 24 AWG | 10 | 0.035 in | 0.889 mm | 300 VDC | Braid Foil | 0.314 in | 7.98 mm | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Polypropylene (PP) | Copper Tinned | UL Style 2919 | Slate | 7 | 32 AWG | 304.8 m | 1000 ft | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 80 °C | -20 ░C | 24 AWG | 10 | 0.035 in | 0.889 mm | 300 VDC | Braid Foil | 0.314 in | 7.98 mm | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Polypropylene (PP) | Copper Tinned | UL Style 2919 | Slate | 7 | 32 AWG | 152.4 m | 500 ft |
