614-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

SKT CARRIER PGA

Part	Material Flammability Rating	Current Rating (Amps)	Contact Resistance	Termination Post Length	Termination Post Length	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Pitch - Post	Pitch - Post	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Contact Material - Mating	Features	Termination	Type	Type	Type	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]
Mill-Max Manufacturing Corp. 614-43-316-31-002000	UL94 V-0	3 A	10 mOhm	0.136 in	3.45 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold	2	16	8	Beryllium Copper	Carrier Open Frame	Solder	7.62 mm	0.3 in	DIP
Mill-Max Manufacturing Corp. 614-43-636-31-018000	UL94 V-0	3 A	10 mOhm	0.17 in	4.32 mm	Tin	30 µin	0.76 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold		36		Beryllium Copper	Carrier Open Frame	Solder			DIP	15.24 mm	0.6 in

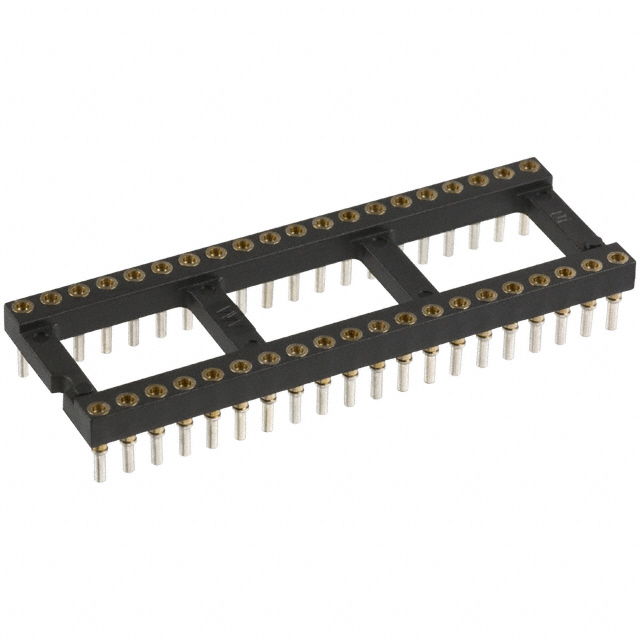

Mill-Max Manufacturing Corp. 614-43-640-31-012000		3 A		0.136 in	3.45 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold		40		Beryllium Copper	Carrier Open Frame	Solder			DIP	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 614-43-652-31-007000	UL94 V-0	3 A	10 mOhm	0.146 in	3.71 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold				Beryllium Copper	Carrier Open Frame	Solder			DIP	15.24 mm	0.6 in

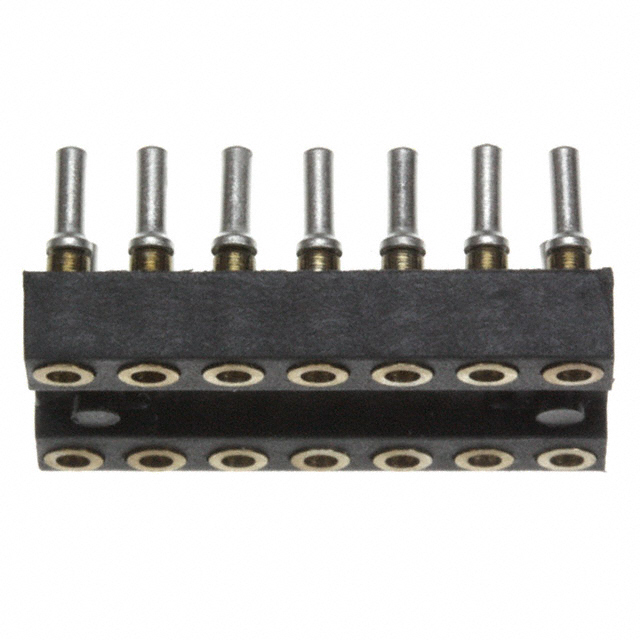

Mill-Max Manufacturing Corp. 614-43-314-31-012000		3 A		0.136 in	3.45 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold		14		Beryllium Copper	Carrier Open Frame	Solder	7.62 mm	0.3 in	DIP
Mill-Max Manufacturing Corp. 614-43-624-31-002000	UL94 V-0	3 A	10 mOhm	0.136 in	3.45 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold		24		Beryllium Copper	Carrier Open Frame	Solder			DIP	15.24 mm	0.6 in	12	2
Mill-Max Manufacturing Corp. 614-43-952-41-001000	UL94 V-0	3 A	10 mOhm	0.165 "	4.19 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold				Beryllium Copper	Carrier Open Frame	Solder	22.86 mm	0.9 in	DIP
Mill-Max Manufacturing Corp. 614-43-320-31-007000	UL94 V-0	3 A	10 mOhm	0.146 in	3.71 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold		20		Beryllium Copper	Carrier Open Frame	Solder	7.62 mm	0.3 in	DIP
Mill-Max Manufacturing Corp. 614-43-310-41-001000	UL94 V-0	3 A	10 mOhm	0.165 "	4.19 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold		10		Beryllium Copper	Carrier Open Frame	Solder	7.62 mm	0.3 in	DIP			2	5
Mill-Max Manufacturing Corp. 614-43-328-41-001000	UL94 V-0	3 A	10 mOhm	0.165 "	4.19 mm	Tin	200 µin	5.08 µm	Brass Alloy	-55 C	125 °C	Through Hole	0.1 "	2.54 mm	0.76 Ám	30 Áin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Gold		28		Beryllium Copper	Carrier Open Frame	Solder	7.62 mm	0.3 in	DIP
