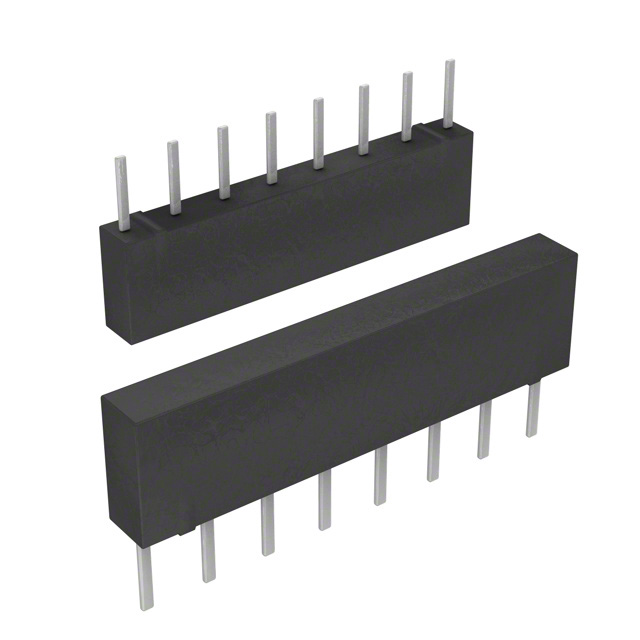

4308M Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES ARRAY 4 RES 2.2K OHM 8SIP
| Part | Temperature Coefficient | Number of Pins | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Power Per Element | Tolerance | Number of Resistors | Resistor-Ratio-Drift | Mounting Type | Package / Case | Circuit Type | Resistance (Ohms) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance (Ohms) [custom] | Resistance (Ohms) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 400 mW | 2 % | 4 | 50 ppm/°C | Through Hole | 8-SIP | Isolated | 2.2 kOhms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 400 mW | 2 % | 4 | 50 ppm/°C | Through Hole | 8-SIP | Isolated | 2.9 kOhms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 400 mW | 2 % | 4 | 50 ppm/°C | Through Hole | 8-SIP | Isolated | 120 Ohms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 400 mW | 2 % | 4 | 50 ppm/°C | Through Hole | 8-SIP | Isolated | 2.2 kOhms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 250 mW | 2 % | 7 | 50 ppm/°C | Through Hole | 8-SIP | Bussed | 47 kOhms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 400 mW | 2 % | 4 | 50 ppm/°C | Through Hole | 8-SIP | Isolated | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 100 Ohms | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 250 mW | 2 % | 7 | 50 ppm/°C | Through Hole | 8-SIP | Bussed | 2.2 kOhms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 400 mW | 2 % | 4 | 50 ppm/°C | Through Hole | 8-SIP | Isolated | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | 1.8k | |||
Bourns Inc. | 250 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 400 mW | 4 | 50 ppm/°C | Through Hole | 8-SIP | Isolated | 22 Ohms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm | ±1Ohm | |||
Bourns Inc. | 100 ppm/°C | 8 | 8-SIP | -55 C | 125 °C | 250 mW | 2 % | 7 | 50 ppm/°C | Through Hole | 8-SIP | Bussed | 3.9 kOhms | 6.35 mm | 0.25 in | 19.91 mm | 0.085 in | 0.784 in | 2.16 mm |
