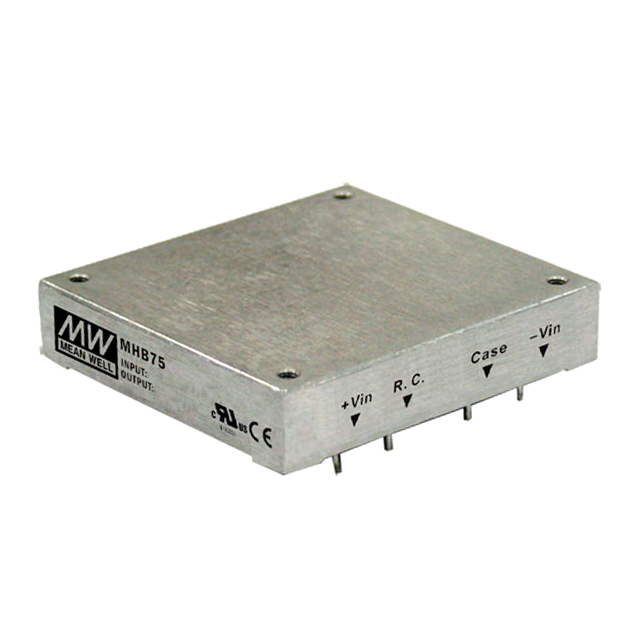

MHB75 Series

Catalog

DC DC CONVERTER 5V 75W

Part	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Input (Min) [Min]	Features	Voltage - Output 1	Efficiency	Number of Outputs	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Supplier Device Package	Power (Watts)
MEAN WELL USA Inc. MHB75-48S05	75 V	-40 °C	100 °C	Half Brick	36 V	OCP OTP OVP Remote On/Off SCP UVLO	5 V	84 %	1	1.5 kV	15 A	ITE (Commercial)	Through Hole	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	75 W
MEAN WELL USA Inc. MHB75-48S24	75 V	-40 °C	100 °C	Half Brick	36 V	OCP OTP OVP Remote On/Off SCP UVLO	24 V	89 %	1	1.5 kV	3.13 A	ITE (Commercial)	Through Hole	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	75 W
MEAN WELL USA Inc. MHB75-24S05	36 V	-40 °C	100 °C	Half Brick	18 V	OCP OTP OVP Remote On/Off SCP UVLO	5 V	84 %	1	1.5 kV	15 A	ITE (Commercial)	Through Hole	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	75 W
MEAN WELL USA Inc. MHB75-48S12	75 V	-40 °C	100 °C	Half Brick	36 V	OCP OTP OVP Remote On/Off SCP UVLO	12 V	89 %	1	1.5 kV	6.25 A	ITE (Commercial)	Through Hole	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	75 W
MEAN WELL USA Inc. MHB75-24S12	36 V	-40 °C	100 °C	Half Brick	18 V	OCP OTP OVP Remote On/Off SCP UVLO	12 V	88 %	1	1.5 kV	6.25 A	ITE (Commercial)	Through Hole	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	75 W
MEAN WELL USA Inc. MHB75-12S05	18 V	-40 °C	100 °C	Half Brick	9 V	OCP OTP OVP Remote On/Off SCP UVLO	5 V	83 %	1	1.5 kV	15 A	ITE (Commercial)	Through Hole	Isolated Module	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	75 W
