5275-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

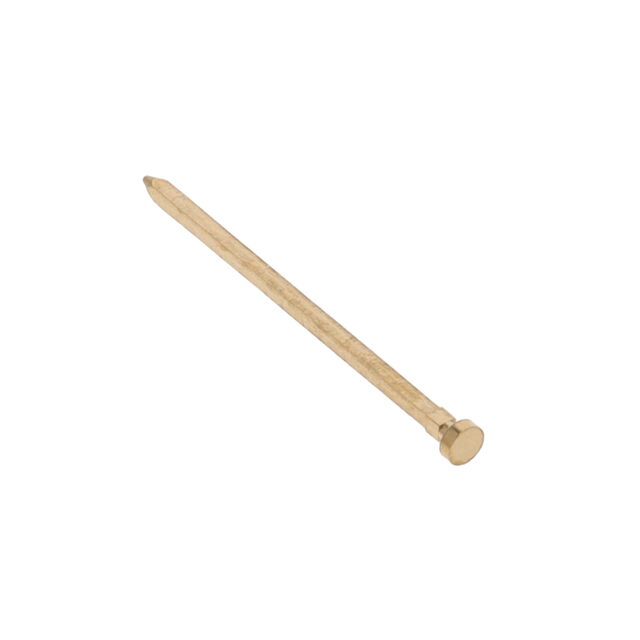

CONN PC PIN CIRC .025DIA GOLD
| Part | Length - Overall [x] | Length - Overall [x] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Pin Size - Above Flange | Pin Size - Above Flange | Mounting Type | Terminal Type | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Insulation | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 17.27 mm | 0.68 " | Press-Fit Square Wire Wrap | 0.06 in | 1.52 mm | 0.66 in | 16.76 mm | Gold | 0.025 in | 0.64 mm | Through Hole | PC Pin | Single End | 0.89 mm | 0.035 in | 20 µin | 0.51 µm | Non-Insulated | Brass Alloy |
 Mill-Max Manufacturing Corp. | 17.27 mm | 0.68 " | Press-Fit Square Wire Wrap | 0.06 in | 1.52 mm | 0.66 in | 16.76 mm | Tin-Lead | 0.025 in | 0.64 mm | Through Hole | PC Pin | Single End | 0.89 mm | 0.035 in | 200 Áin | 5.08 Ám | Non-Insulated | Brass Alloy |
Mill-Max Manufacturing Corp. | 17.27 mm | 0.68 " | Press-Fit Square Wire Wrap | 0.06 in | 1.52 mm | 0.66 in | 16.76 mm | Tin | 0.025 in | 0.64 mm | Through Hole | PC Pin | Single End | 0.89 mm | 0.035 in | 200 Áin | 5.08 Ám | Non-Insulated | Brass Alloy |
