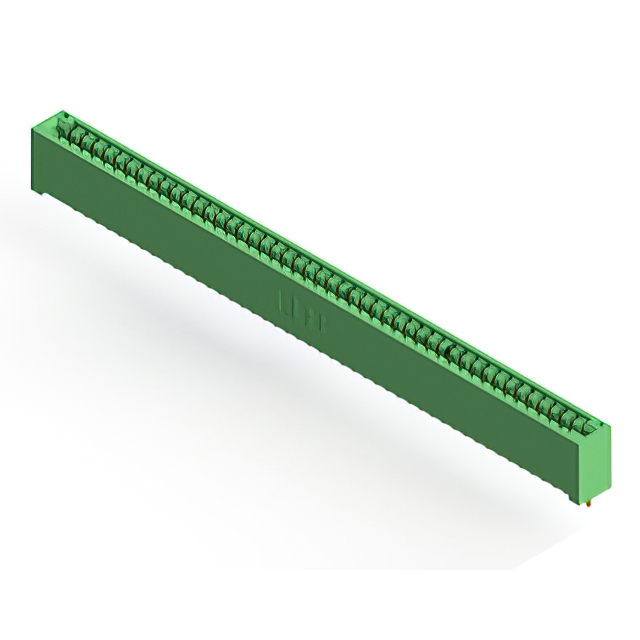

846-047 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 47POS 0.125

Part	Material - Insulation	Termination Rows	Pitch	Pitch	Mounting Type	Number of Rows	Color	Read Out	Card Type	Contact Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Positions/Bay/Row	Contact Finish	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature
EDAC Inc. 846-047-522-602	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy	3.25 mm	0.128 "
EDAC Inc. 846-047-541-112	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded
EDAC Inc. 846-047-526-607	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy			M3 Threaded Insert Top Mount Opening
EDAC Inc. 846-047-558-104	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Right Angle Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy	3.96 mm	0.156 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 846-047-521-103	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy	2.95 mm	0.116 "	Floating Bobbin Flush Mount
EDAC Inc. 846-047-500-612	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy	3.25 mm	0.128 "	Side Mount Opening Unthreaded
EDAC Inc. 846-047-559-107	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Right Angle Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-047-541-107	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-047-540-107	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-047-522-607	Diallyl Phthalate (DAP)	1	3.18 mm	0.125 in	Through Hole	1	Green	Single	Non Specified - Single Edge	Cantilever	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	47	125 °C	-40 C	Female	47	Gold	Copper Alloy			M3 Threaded Insert Top Mount Opening
