R18041 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

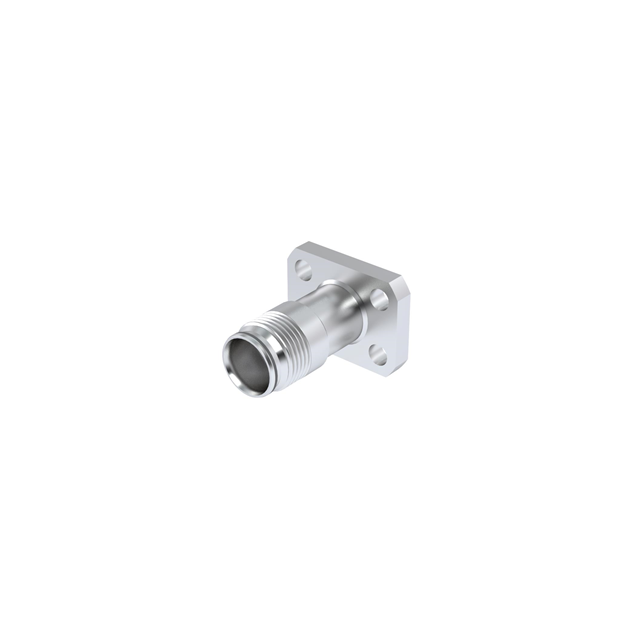

NEX10 / STRAIGHT JACK WITH FLANG
| Part | Voltage Rating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Dielectric Material | Number of Ports | Connector Type | Connector Style | Mounting Type | Contact Termination | Fastening Type | Housing Color | Ingress Protection | Frequency - Max [Max] | Center Contact Material | Cable Group | Shield Termination | Mounting Feature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | Brass | -55 C | 125 °C | Silver | White Bronze | Polytetrafluoroethylene (PTFE) | 1 | Female Socket Jack | NEX10 | Panel Mount | Solder | Threaded | Silver | IP68 - Dust Tight Waterproof | 20 GHz | Beryllium Copper | RG-405 (.085" Semi Rigid) | Solder | Flange | 50 Ohms |
 Radiall USA, Inc. | 335 V | Brass | -55 C | 125 °C | Silver | Polytetrafluoroethylene (PTFE) | 1 | Female Socket Jack | NEX10 | Panel Mount | Solder | Threaded | 20 GHz | Beryllium Copper | RG-405 (.085" Semi Rigid) | Solder | Flange | 50 Ohms |
