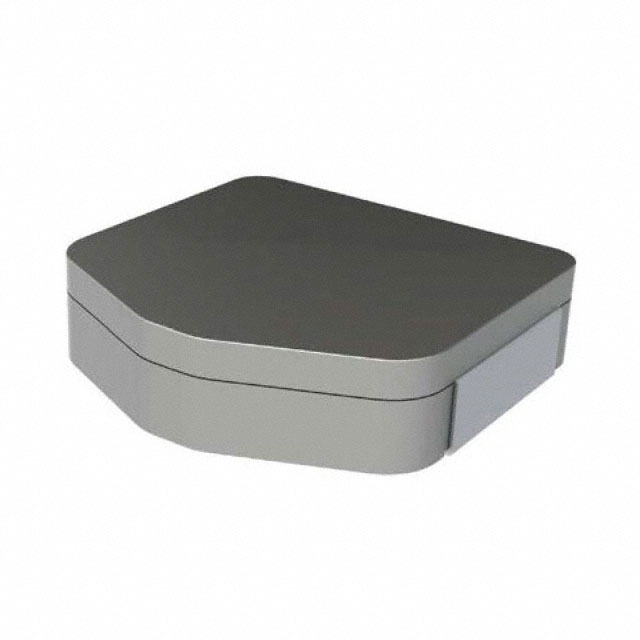

MPX1D2213 Series
Manufacturer: KEMET
Beta
⌘K
INDUCTOR, 33UH, SHIELDED, 18A ROHS COMPLIANT: YES
| Part | Current - Saturation (Isat) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Package / Case | Frequency - Self Resonant | Inductance Frequency - Test | Material - Core | DC Resistance (DCR) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | Tolerance | Type | Inductance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 20.5 A | 155 C | -55 C | Shielded | Nonstandard | 2.9 MHz | 100 kHz | Metal Composite | 16 mOhm | 22 mm | 22.5 mm | 0.866 in | 0.886 in | 0.512 " | 13 mm | 17.5 A | 20 % | Drum Core Wirewound | 33 µH | Surface Mount |
