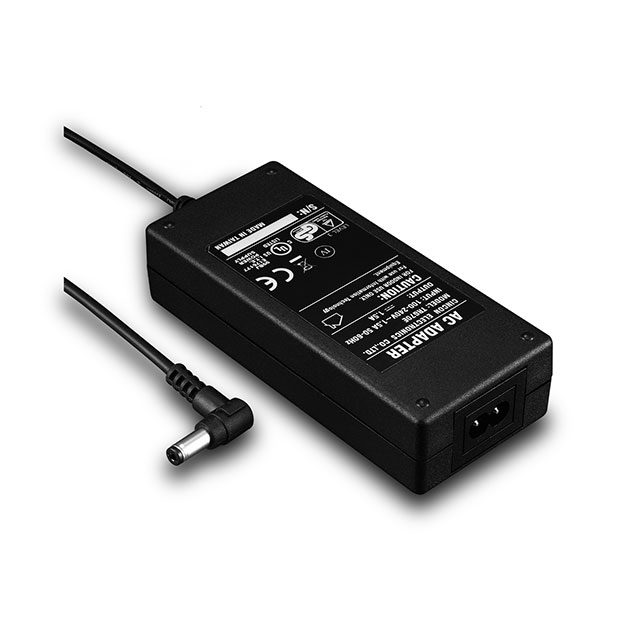

TRG70E240 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 72W

Part	Weight	Weight	Applications	Polarization	Region Utilized	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Type	Input Connector	Form	Approval Agency	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Power (Watts)	Cord Length	Cord Length	Voltage - Output	Current - Output (Max) [Max]	Standard Number
Cincon Electronics Co. LTD TRG70E240-11E03 VI	345.18 g	0.761 lb	ITE (Commercial)	Positive Center	International	5.2 in	58 mm	2.28 in	30.5 mm	1.2 "	132 mm	-20 ░C	70 °C	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Cord (Sold Separately)	IEC 320-C8	Desktop (Class II)	CE cULus FCC GS TUV	150 mW	264 VAC	90 VAC	CoC Tier 2 Level VI	72 W	70.9 "	1.8 m	24 V	3 A

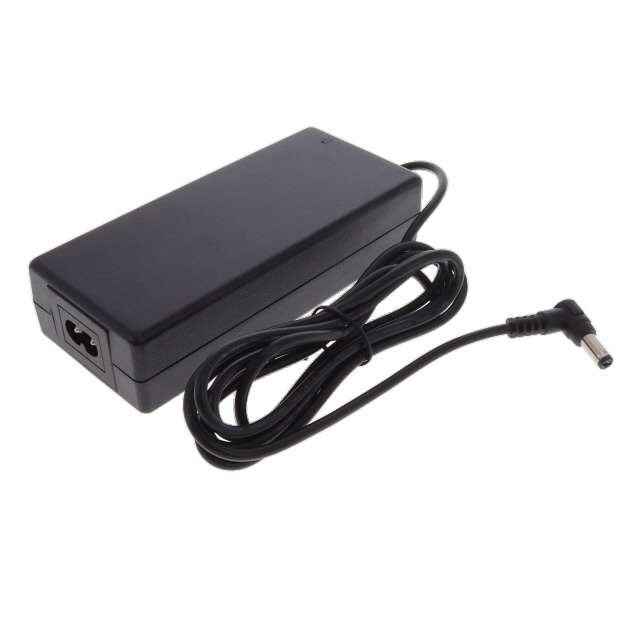

Cincon Electronics Co. LTD TRG70E240-01E03 VI			ITE (Commercial)	Positive Center	International	5.2 in	58 mm	2.28 in	30.5 mm	1.2 "	132 mm	-20 ░C	70 °C	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	Cord (Sold Separately)	IEC 320-C8	Desktop (Class II)	CE cULus FCC GS TUV	150 mW	264 VAC	90 VAC	CoC Tier 2 Level VI	72 W	70.9 "	1.8 m	24 V	3 A	60950-1
