5478L Series

Catalog

MULTI-PAIR 16COND 24AWG 100'

Part	Number of Conductors	Voltage	Cable Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Features	Jacket Color	Length	Length

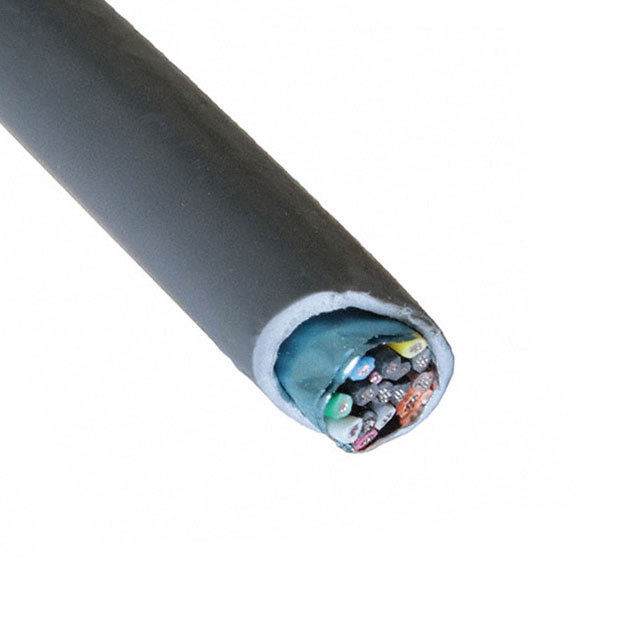

ALPHA WIRE 5478L SL005	16	300 V	Multi-Pair	24 AWG	0.025 in	0.635 mm	Aluminum	Copper Tinned	0.319 "	8.1 mm	100 %	Foil	Low Smoke Zero Halogen (LSZH)	32 AWG	7	30.5 m	100 ft	Drain Wire	Slate
ALPHA WIRE 5478L SL001	16	300 V	Multi-Pair	24 AWG	0.025 in	0.635 mm	Aluminum	Copper Tinned	0.319 "	8.1 mm	100 %	Foil	Low Smoke Zero Halogen (LSZH)	32 AWG	7			Drain Wire	Slate	1000 ft	304.8 m
