AFB03512 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 9.5V TO 13.8V 5.5CFM 22DB 35 X 35 X 10MM

Part	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Material - Frame	Bearing Type	Voltage - Rated	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Static Pressure	Static Pressure	Noise	Width [y]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Air Flow	Air Flow	RPM	Features	Approval Agency	Weight	Weight	Fan Type

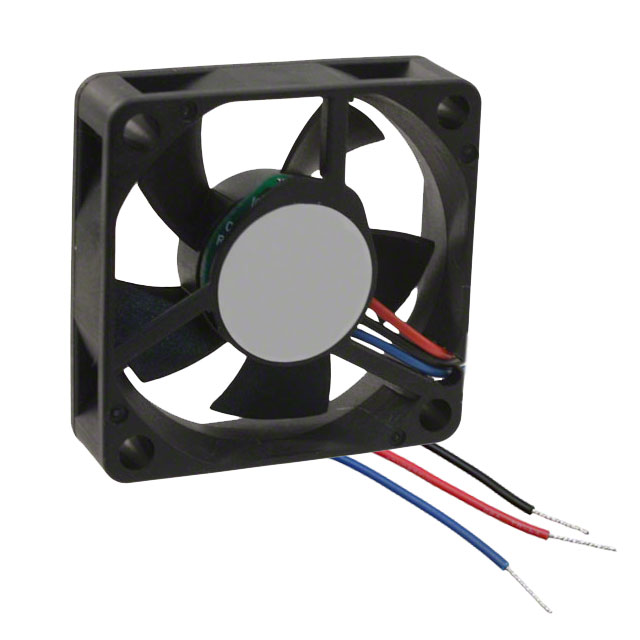

Delta Electronics AFB03512HA-AF00	30000 Hrs	0.09 A	13.8 VDC	9.5 VDC	Plastic	Plastic	Ball	12 VDC	35 mm	Square	35 mm	0.106 in H2O	26.4 Pa	22 dB(A)	10 mm	3 Wire Leads	70 °C	-10 °C	1.08 W	0.154 mł/min	5.5 CFM	7000 RPM	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	10.43 g	0.023 lb	Tubeaxial

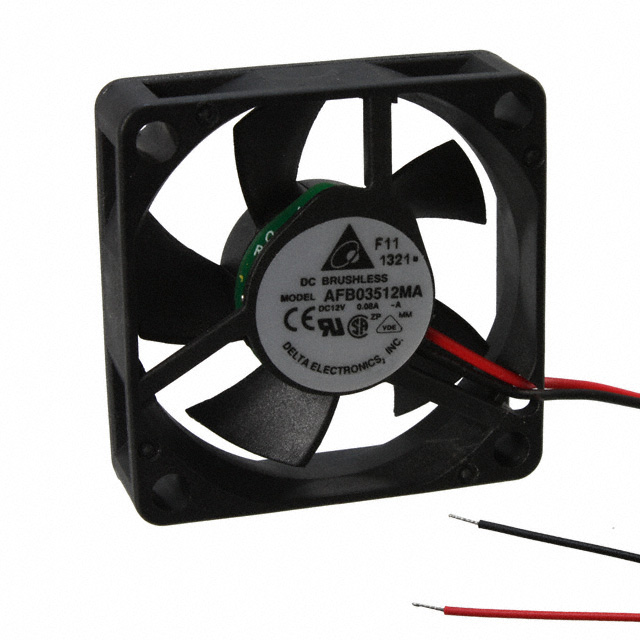

Delta Electronics AFB03512MA-A	30000 Hrs	50 mA	13.8 VDC	9.5 VDC	Plastic	Plastic	Ball	12 VDC	35 mm	Square	35 mm	0.075 in H2O	18.6 Pa	18 dB(A)	10 mm	2 Wire Leads	70 °C	-10 °C	600 mW	0.126 m³/min	4.5 CFM	5800 RPM		CE CSA UL VDE	10.43 g	0.023 lb	Tubeaxial
Delta Electronics AFB03512LA-C	30000 Hrs	30 mA	13.2 VDC	4.5 V	Plastic	Plastic	Ball	12 VDC	35 mm	Square	35 mm	0.048 in H2O	11.9 Pa	13 dB(A)	10 mm	2 Wire Leads	70 °C	-10 °C	0.36 W	0.095 m³/min	3.4 CFM	4500 RPM			10.43 g	0.023 lb	Tubeaxial

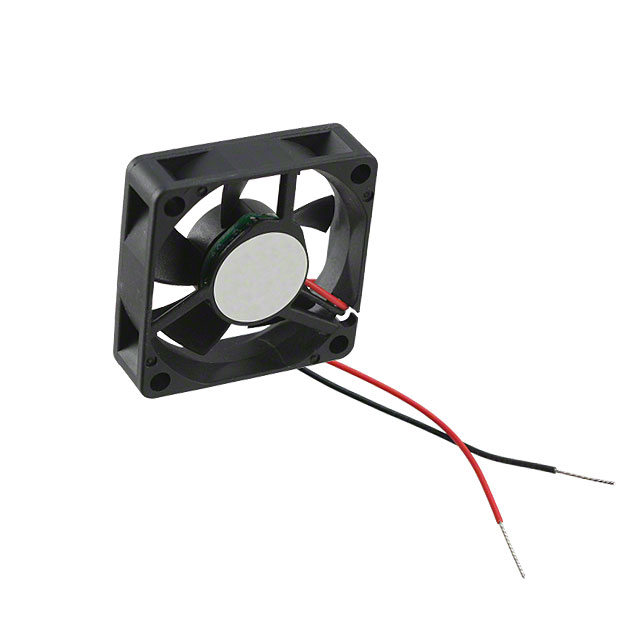

Delta Electronics AFB03512HA-A	30000 Hrs	0.09 A	13.8 VDC	9.5 VDC	Plastic	Plastic	Ball	12 VDC	35 mm	Square	35 mm	0.106 in H2O	26.4 Pa	22 dB(A)	10 mm	2 Wire Leads	70 °C	-10 °C	1.08 W	0.154 mł/min	5.5 CFM	7000 RPM		CE CSA UL VDE	10.43 g	0.023 lb	Tubeaxial
