EC3AB26 Series

Catalog

DC DC CONVERTER +/-15V 3W

Part	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Features	Applications	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Efficiency	Mounting Type	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Package / Case	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1

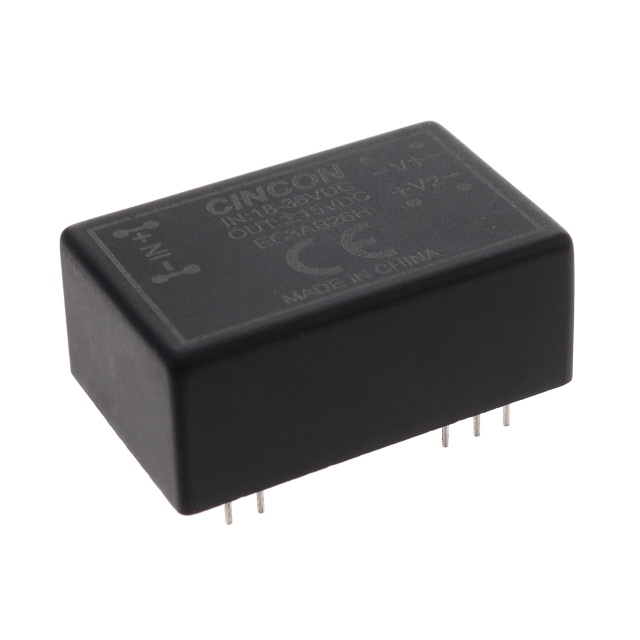

Cincon Electronics Co. LTD EC3AB26H	CE cURus	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	3000 V	SCP	ITE (Commercial)	18 V	36 V	Isolated Module	77 %	Through Hole	-15 V	100 mA	100 mA	24-DIP Module 14 Leads	3 W	2	71 °C	-25 °C	15 V
Cincon Electronics Co. LTD EC3AB26HM	CE cURus	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	1.5 kV	SCP	ITE (Commercial)	18 V	36 V	Isolated Module	77 %	Through Hole	-15 V	100 mA	100 mA	24-DIP Module 14 Leads	3 W	2	71 °C	-25 °C	15 V
Cincon Electronics Co. LTD EC3AB26M		1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	500 V	SCP	ITE (Commercial)	18 V	36 V	Isolated Module	77 %	Through Hole	-15 V	100 mA	100 mA	24-DIP Module 14 Leads	3 W	2	71 °C	-25 °C	15 V
