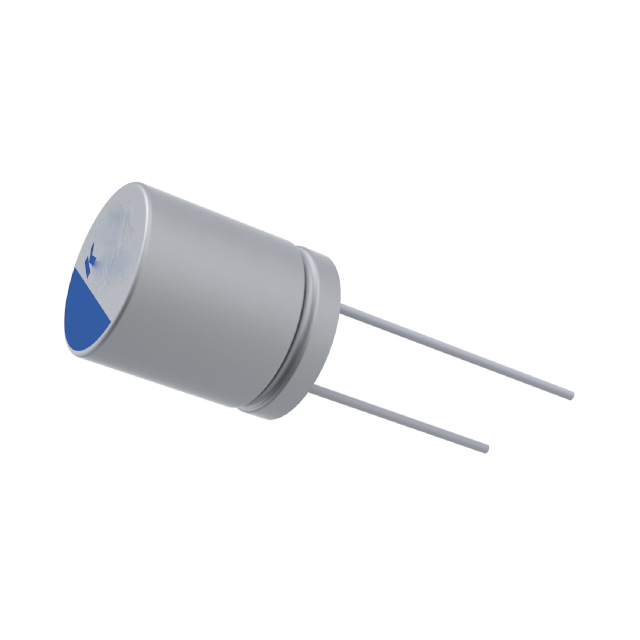

A759KS Series

Manufacturer: KEMET

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 80VOLT 33UF RAD 2KHR ESR=55 MOHMS

Part	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Capacitance	Voltage - Rated	Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Applications	Package / Case	Ripple Current @ Low Frequency	Lifetime @ Temp.	ESR (Equivalent Series Resistance)
KEMET A759KS336M1KAAE055	1.839 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	33 ÁF	80 V	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	91.95 mA	2000 Hrs	55 mOhm
KEMET A759KS108M0JAAE013	5.363 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	1000 µF	6.3 VDC	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	268.15 mA	2000 Hrs	13 mOhms
KEMET A759KS156M2AAAE052	1.85 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	15 µF	100 V	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	92.5 mA	2000 Hrs	52 mOhms
KEMET A759KS157M1EAAE025	1.99 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	150 µF	25 VDC	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	99.5 mA	2000 Hrs	25 mOhm
KEMET A759KS107M1VAAE031	4.29 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	100 µF	35 V	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	214.5 mA	2000 Hrs	31 mOhm
KEMET A759KS227M1CAAE015	4.429 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	220 µF	16 V	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	221.45 mA	2000 Hrs	15 mOhm
KEMET A759KS475M2EAAE496	650 mA	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	4.7 µF	250 V	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	32.5 mA	2000 Hrs	496 mOhm
KEMET A759KS476M1JAAE068	1.63 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	47 µF	63 V	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	81.5 mA	2000 Hrs	68 mOhm
KEMET A759KS396M1HAAE042	1.63 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	39 µF	50 VDC	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	81.5 mA	2000 Hrs	42 mOhms
KEMET A759KS687M0JAAE014	4.844 A	0.315 in	8 mm	0.138 in	3.5 mm	0.512 "	13 mm	Through Hole	680 µF	6.3 VDC	Polymer	-55 C	125 °C	20 %	General Purpose	Can Radial	242.2 mA	2000 Hrs	14 mOhms
