747052 Series

Catalog

CONN D-SUB RCPT 15POS IDC

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Material Flammability Rating	Termination	Contact Finish	Current Rating (Amps)	Connector Type	Shell Size, Connector Layout	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Contact Type	Number of Rows [custom]	Features	Mounting Type	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
TE Connectivity AMP Connectors 747052-3	Thermoplastic	-55 C	105 ░C	Black	Phosphor Bronze	UL94 V-0	IDC Ribbon Cable	Gold	1.25 A	Receptacle Female Sockets	2	15	30 Áin	0.76 Ám	Housing/Shell	4-40	Signal	2	Feed Through	Free Hanging (In-Line)	D-Sub

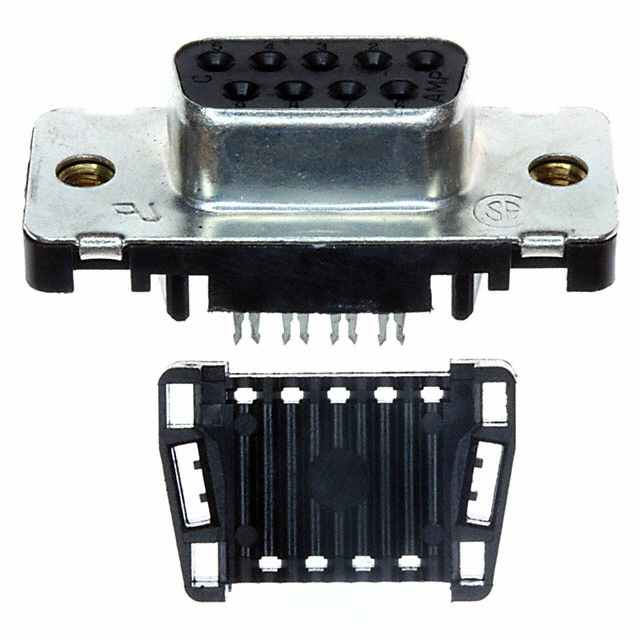

TE Connectivity AMP Connectors 747052-4	Thermoplastic	-55 C	105 ░C	Black	Phosphor Bronze	UL94 V-0	IDC Ribbon Cable	Gold	1.25 A	Receptacle Female Sockets		9	30 Áin	0.76 Ám	Housing/Shell	4-40	Signal	2	Feed Through	Free Hanging (In-Line)	D-Sub	1	DE E
