EZG.0B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 7POS GOLD SOLDER
| Part | Contact Material | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Orientation [custom] | Fastening Type | Primary Material | Color | Shell Material | Shell Finish | Contact Finish - Mating | Connector Type | Mounting Type | Features | Shell Size - Insert [custom] | Ingress Protection | Current Rating (Amps) | Material Flammability Rating | Shielding | Number of Positions | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

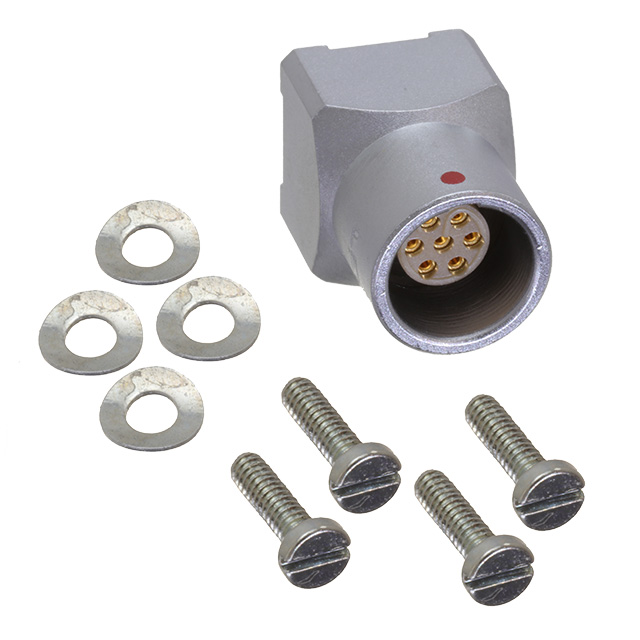

 LEMO | Bronze | Polyetheretherketone (PEEK) | 1.5 Ám | 59 Áin | -55 C | 250 °C | Solder | G | Push-Pull | Metal | Silver | Brass | Chrome | Gold | Receptacle Female Sockets | Through Hole | Board Lock | 307 | IP50 - Dust Protected | 2.5 A | UL94 V-0 | Shielded | 7 | |

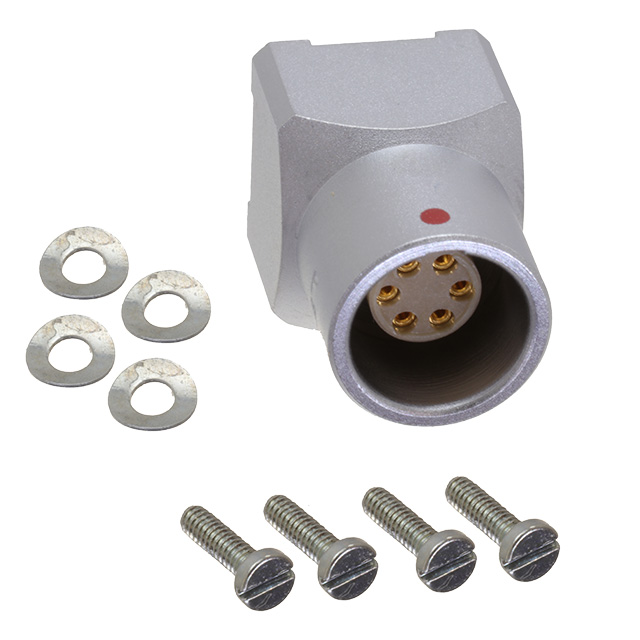

 LEMO | Bronze | Polyetheretherketone (PEEK) | 1.5 Ám | 59 Áin | -55 C | 250 °C | Solder | G | Push-Pull | Metal | Silver | Brass | Chrome | Gold | Receptacle Female Sockets | Through Hole | Board Lock | IP50 - Dust Protected | 2.5 A | UL94 V-0 | Shielded | 6 | 306 | |

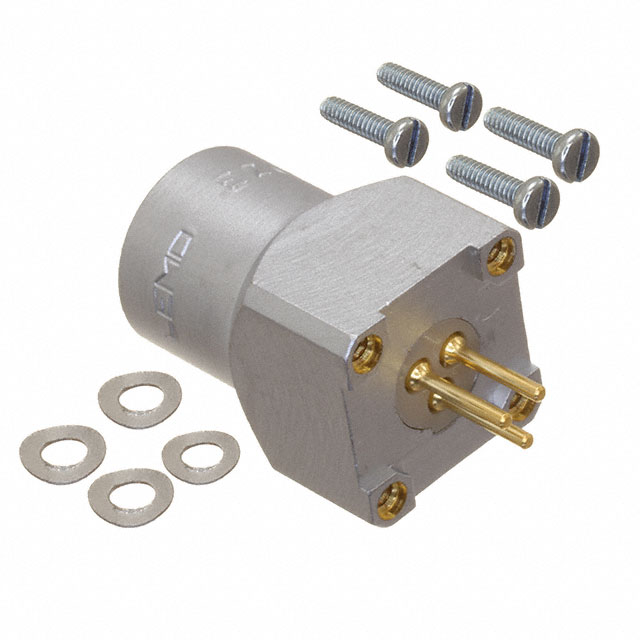

 LEMO | Bronze | Polyetheretherketone (PEEK) | 1.5 Ám | 59 Áin | -55 C | 250 °C | Solder | G | Push-Pull | Metal | Silver | Brass | Chrome | Gold | Receptacle Female Sockets | Through Hole | Board Lock | IP50 - Dust Protected | 8 A | UL94 V-0 | Shielded | 303 | ||

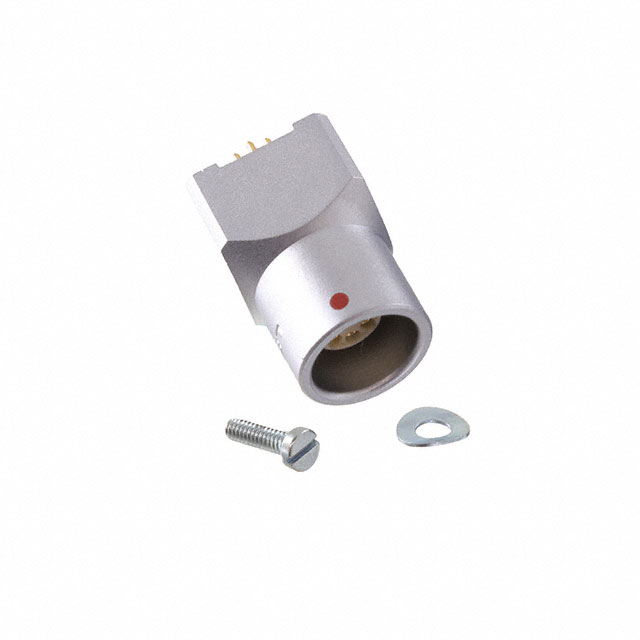

 LEMO | Bronze | Polyetheretherketone (PEEK) | 1.5 Ám | 59 Áin | -55 C | 250 °C | Solder | G | Push-Pull | Metal | Silver | Brass | Chrome | Gold | Receptacle Female Sockets | Through Hole | Board Lock | IP50 - Dust Protected | 2 A | UL94 V-0 | Shielded | 9 | 309 |
