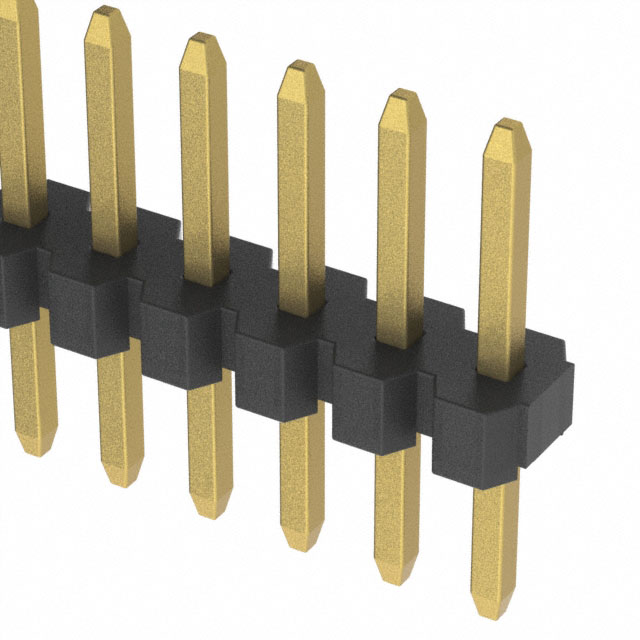

HPH1-A Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 10POS 1.27MM

Part	Contact Finish Thickness - Post	Shrouding	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Shape	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Material	Connector Type	Number of Positions	Number of Rows	Termination	Material Flammability Rating	Contact Type	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length
Adam Tech HPH1-A-10-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	10	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-18-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	18	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-11-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	11	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-19-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	19	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-09-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	9	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-15-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	15	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-07-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	7	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-04-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	4	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-14-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header	14	1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
Adam Tech HPH1-A-17-UA	Flash	Unshrouded	1 mm	0.039 in	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	Black	Square	Gold	250 VAC	Flash	Push-Pull	Gold	3 mm	0.118 in	Brass	Header		1	Solder	UL94 V-0	Male Pin	Thermoplastic	0.091 "	2.3 mm	All	0.248 in	6.3 mm
