UMT-H Series

Catalog

"UMT-H, 5 A, 277 VAC, 125 VDC, TIME-LAG T, 1.500 PCS., FUSE, , SMT, 0X0 MM\/

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage Rating - DC	Fuse Type	Voltage Rating - AC	Mounting Type	Response Time	Current Rating (Amps)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Melting I˛t	Melting I²t

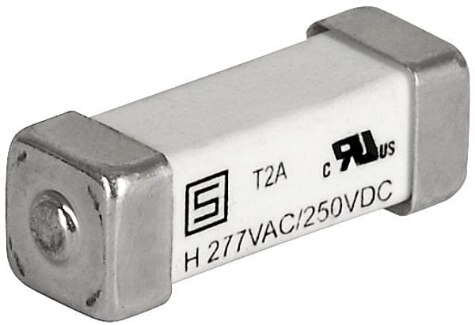

SCHURTER Inc. 3403.0281.23	0.211 in	0.606 in	0.211 "	15.4 mm	5.35 mm	5.35 mm	CQC cURus VDE	125 VDC	Board Mount (Cartridge Style Excluded)	277 V	Surface Mount	Slow Blow	5 A	2-SMD Square End Block	-55 C	125 °C	1.5 kA
SCHURTER Inc. 3403.0280.23	0.211 in	0.606 in	0.211 "	15.4 mm	5.35 mm	5.35 mm	CQC cURus VDE	125 VDC	Board Mount (Cartridge Style Excluded)	277 V	Surface Mount	Slow Blow	4 A	2-SMD Square End Block	-55 C	125 °C	1.5 kA	48	48
SCHURTER Inc. 3403.0282.23	0.211 in	0.606 in	0.211 "	15.4 mm	5.35 mm	5.35 mm	CQC cURus VDE	125 VDC	Board Mount (Cartridge Style Excluded)	277 V	Surface Mount	Slow Blow	6.3 A	2-SMD Square End Block	-55 C	125 °C	1.5 kA		165 I²t
SCHURTER Inc. 3403.0273.11	0.211 in	0.606 in	0.211 "	15.4 mm	5.35 mm	5.35 mm	CQC cURus VDE	250 V	Board Mount (Cartridge Style Excluded)	277 V	Surface Mount	Slow Blow	800 mA	2-SMD Square End Block	-55 C	125 °C	1.5 kA	2.1	2.1
SCHURTER Inc. 3403.0276.11	0.211 in	0.606 in	0.211 "	15.4 mm	5.35 mm	5.35 mm	CQC cURus VDE	250 V	Board Mount (Cartridge Style Excluded)	277 V	Surface Mount	Slow Blow	1.6 A	2-SMD Square End Block	-55 C	125 °C	1.5 kA		5.4
SCHURTER Inc. 3403.0266.11	0.211 in	0.606 in	0.211 "	15.4 mm	5.35 mm	5.35 mm	CQC cURus VDE	250 V	Board Mount (Cartridge Style Excluded)	277 V	Surface Mount	Slow Blow	160 mA	2-SMD Square End Block	-55 C	125 °C	1.5 kA	0.045	0.045 I²t
SCHURTER Inc. 3403.0271.23	0.211 in	0.606 in	0.211 "	15.4 mm	5.35 mm	5.35 mm	CQC cURus VDE	250 V	Board Mount (Cartridge Style Excluded)	277 V	Surface Mount	Slow Blow	0.5 A	2-SMD Square End Block	-55 C	125 °C	1.5 kA		0.45
