52015 Series

Manufacturer: LAPP

Catalog

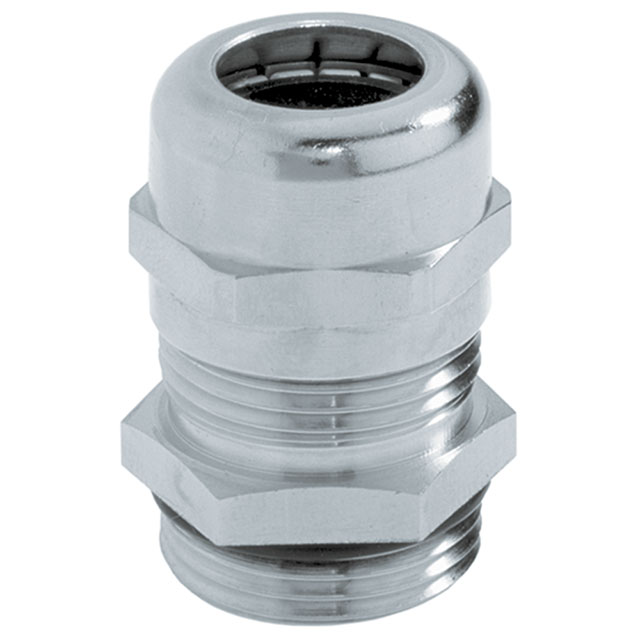

CABLE GLAND 4-8MM PG9 BRASS

Part	Color	Ingress Protection	Thread Size	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]
LAPP 52015710	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG9	Cable Gland	8 mm	0.315 in	Brass Nickel Plated	4 mm	0.157 in	-40 C	100 °C	6 mm	0.236 in	O-Ring
LAPP 52015770	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG7	Cable Gland			Brass Nickel Plated			-40 C	100 °C	5 mm	0.197 in	O-Ring	0.078 in	1.98 mm	0.197 in	5 mm
LAPP 52015810	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG16	Cable Gland	13 mm	0.512 in	Brass Nickel Plated			-40 C	100 °C	6.5 mm	0.256 in	O-Ring	0.236 in	6 mm
LAPP 52015830	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG29	Cable Gland			Brass Nickel Plated		0.413 in	-40 C	100 °C	8 mm	0.315 "	O-Ring			0.788 in		20.02 mm	10.5 mm
LAPP 52015740	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG16	Cable Gland		0.551 in	Brass Nickel Plated			-40 C	100 °C	6.5 mm	0.256 in	O-Ring				14 mm			0.315 in	8 mm
LAPP 52015780	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG9	Cable Gland			Brass Nickel Plated			-40 C	100 °C	6 mm	0.236 in	O-Ring	0.078 in	1.98 mm	0.236 in	6 mm
LAPP 52015800	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG13	Cable Gland			Brass Nickel Plated	4 mm	0.157 in	-40 C	100 °C	6.5 mm	0.256 in	O-Ring			0.354 in	9 mm
LAPP 52015700	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG7	Cable Gland			Brass Nickel Plated			-40 C	100 °C	5 mm	0.197 in	O-Ring	0.078 in	1.98 mm	0.256 in	6.5 mm
LAPP 52015820	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG21	Cable Gland			Brass Nickel Plated			-40 C	100 °C	7 mm	0.276 "	O-Ring			0.63 in	16 mm			0.315 in	8 mm
LAPP 52015750	Silver	IP68 - Dust Tight Waterproof; Nema 6P	PG21	Cable Gland	18.01 mm	0.709 in	Brass Nickel Plated		0.433 in	-40 C	100 °C	7 mm	0.276 "	O-Ring						11 mm
