PS2915-1 Series

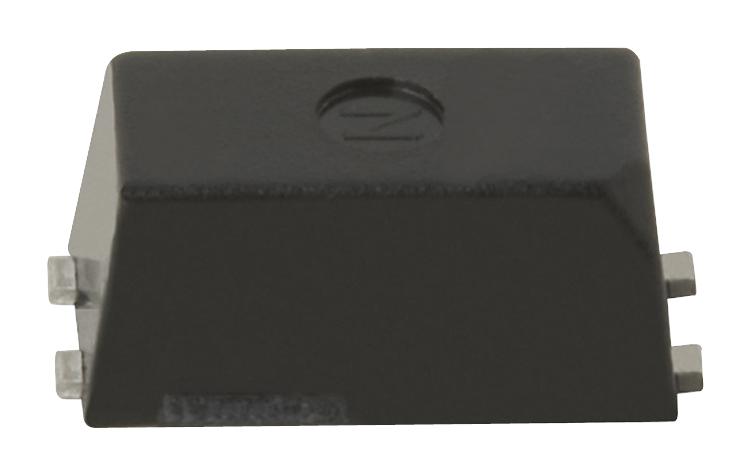

High CTR, AC Input Response Type 4-PIN Ultra Small Flat-lead Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

High CTR, AC Input Response Type 4-PIN Ultra Small Flat-lead Photocoupler

Part	Supplier Device Package	Current Transfer Ratio (Min) [Min]	Vce Saturation (Max) [Max]	Package / Case	Voltage - Output (Max) [Max]	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Current - Output / Channel [custom]	Current Transfer Ratio (Max)	Output Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Number of Channels	Voltage - Isolation
Renesas Electronics Corporation PS2915-1-F3-AX	4-Mini-Flat	100 %	300 mV	4-SMD Flat Leads	40 V	1.1 V	100 °C	-55 °C	50 mA	40 mA	400 %	1.81 mOhm	10 µs	5 µs	Surface Mount	120 µs	40 µs	1	2500 Vrms
Renesas Electronics Corporation PS2915-1-AX	4-Mini-Flat	100 %	300 mV	4-SMD Flat Leads	40 V	1.1 V	100 °C	-55 °C	50 mA	40 mA	400 %	1.81 mOhm	10 µs	5 µs	Surface Mount	120 µs	40 µs	1	2500 Vrms

Catalog

High CTR, AC Input Response Type 4-PIN Ultra Small Flat-lead Photocoupler

Description

The PS2915-1 is an optically coupled isolator containing GaAs light emitting diodes and an NPN silicon phototransistor in one package for high density mounting applications. An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 30%, compared with the PS28xx series.
