W24D20001 Series
Manufacturer: Carling Technologies
Beta
⌘K

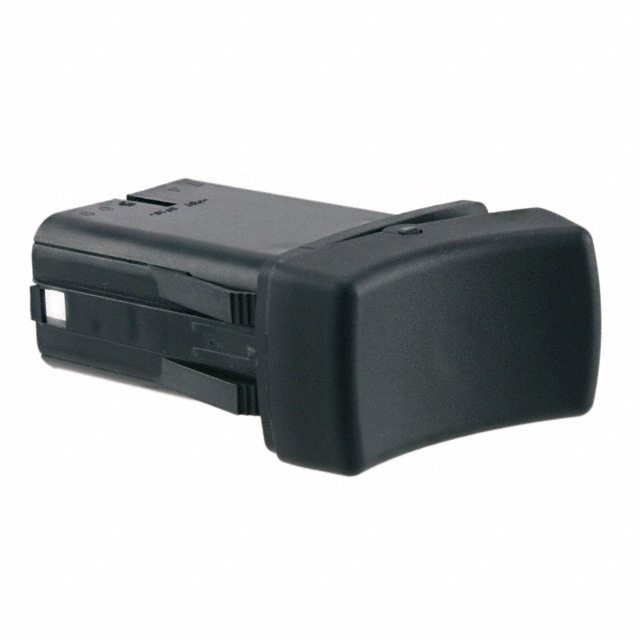

ROCKER SWITCHES W24D20001-DZZ13-000
| Part | Mechanical Life | Electrical Life | Mounting Type | Current Rating (Amps) | Circuit | Actuator Marking | Voltage Rating - DC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Actuator Type | Termination Style | Switch Function | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | Panel Mount Snap-In | 10 A | DPDT | O - | 12 V | 36.83 mm | 21.08 mm | 85 °C | -40 C | IP68 - Dust Tight Waterproof | Concave (Curved) | Quick Connect - 0.110" (2.8mm) | On-On | |
 Carling Technologies | 100000 Cycles | 100000 Cycles | Panel Mount Snap-In | 10 A | DPDT | No Marking | 12 V | 36.83 mm | 21.08 mm | 85 °C | -40 C | IP68 - Dust Tight Waterproof | Concave (Curved) | Quick Connect - 0.110" (2.8mm) | On-On | Black |
